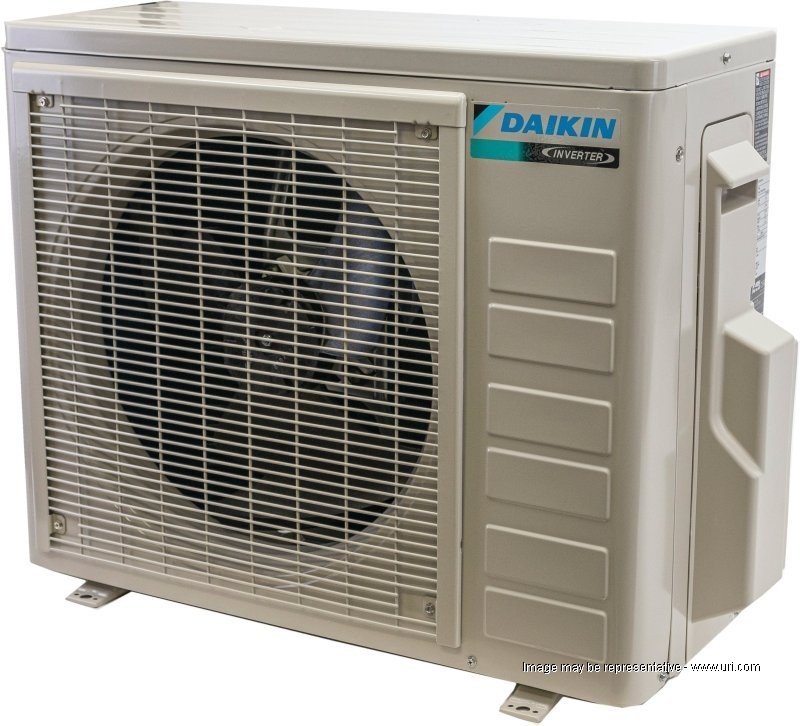

Daikin RXB12AXVJU Heat Pump
Score: 8.5/10 — A compact, high-efficiency mini-split that delivers reliable heating and cooling for single zones, with quiet operation and solid build quality.
Overview
The Daikin RXB12AXVJU is a high-efficiency 12,000 BTU single-zone mini-split system that provides a premium alternative to standard HVAC setups for those seeking precision climate control.
Check out the Daikin RXB12AXVJU Heat Pump for the latest pricing and specifications.
This ductless heat pump is designed to provide reliable heating and cooling for residential and light commercial spaces up to roughly 500 square feet. It pairs an outdoor condenser (Daikin RXB12AXVJU) with a compatible wall-mounted indoor unit to provide both cooling and heating via inverter-driven variable-speed compressor technology. This system eliminates the need for expensive and space-consuming ductwork, making it an ideal retrofit for older homes or a primary climate solution for new additions. For more options in this category, you can explore the Daikin 17 SEER Single-Zone Ductless Mini-Split Heat Pump 12000 BTU with WiFi.This model targets homeowners who want a ductless solution for room additions, converted garages, or whole-home zoning without the complexity of central ductwork. Its compact footprint and low sound levels make it a practical choice for bedrooms, home offices, and small living areas where noise sensitivity matters. By isolating a single room, users can avoid heating or cooling unoccupied parts of the house, leading to significant energy savings during peak summer and winter months.
Check out the Daikin RXB12AXVJU for detailed pricing and availability.
As detailed in our guide to the best mini-splits for small rooms, Daikin positions the RXB series as a balance of performance and value, offering SEER2 ratings in the mid-teens and HSPF2 ratings that meet or exceed ENERGY STAR thresholds in most climate zones. The unit uses R-410A refrigerant and supports operation down to -4°F (-20°C) in heating mode, making it viable for many northern U.S. climates when properly sized. This versatility allows the RXB12AXVJU to transition from a summer cooler to a winter heater with a simple press of a button on the wireless remote.
Key Features
Variable-speed compressor modulates output to match load, reducing temperature swings and improving efficiency compared to fixed-speed units.
Rated for heating operation down to -4°F (-20°C) without auxiliary heat, extending usability into shoulder seasons and mild winters.
Outdoor unit sound pressure as low as 49 dB(A) in cooling mode; indoor unit as low as 19 dB(A) on low fan speed.
Handheld infrared remote with weekly timer, sleep mode, and powerful/eco functions ships standard; optional Wi-Fi adapter available for app control.
Automatically resumes operation after power loss; error codes displayed on indoor unit for simplified troubleshooting.
Corrosion-resistant coating on outdoor heat exchanger extends coil life in coastal or industrial environments.
| Feature | Value |
|---|---|
| Model Number | RXB12AXVJU (outdoor) / FTXB12AXVJU (indoor) |
| Cooling Capacity | 12,000 BTU/h (3.5 kW) |
| Heating Capacity | 13,000 BTU/h (3.8 kW) at 47°F; 7,800 BTU/h at 17°F |
| SEER2 | 16.0 |
| EER2 | 11.0 |
| HSPF2 | 9.0 |
| Voltage / Phase | 208/230V, 1-phase, 60Hz |
| Min. Circuit Ampacity (MCA) | 12.5 A |
| Max. Overcurrent Protection (MOP) | 15 A |
| Refrigerant | R-410A (factory charge: 2.09 lbs / 0.95 kg) |
| Outdoor Sound Pressure (Cool/Heat) | 49 / 51 dB(A) |
| Indoor Sound Pressure (Hi/Mi/Lo/Quiet) | 41 / 36 / 30 / 19 dB(A) |
| Outdoor Dimensions (H×W×D) | 21-5/8 × 26-9/16 × 11-3/16 in (550 × 675 × 284 mm) |
| Indoor Dimensions (H×W×D) | 11-1/4 × 30-5/16 × 9-1/4 in (285 × 770 × 233 mm) |
| Outdoor Weight | 71 lbs (32 kg) |
| Indoor Weight | 18 lbs (8 kg) |
| Line Set Sizes (Liq/Suct) | 1/4 in / 3/8 in (6.35 / 9.52 mm) |
| Max. Pipe Length / Height Diff. | 66 ft (20 m) / 49 ft (15 m) |
| Operating Range (Cool) | 50°F – 115°F (10°C – 46°C) |
| Operating Range (Heat) | -4°F – 75°F (-20°C – 24°C) |
| Warranty (Registered) | 12-year compressor, 12-year parts |
Pros & Cons
Pros
- Strong heating capacity retention at low outdoor temperatures
- Very quiet indoor operation on low/quiet fan speeds
- Compact outdoor unit fits tight side-yard clearances
- Daikin’s reputation for reliability and widespread service network
- 12-year registered warranty on compressor and parts
- Blue Fin coating adds durability in harsh environments
Cons
- SEER2 16.0 is modest compared to premium 20+ SEER2 models
- No built-in Wi-Fi; requires optional adapter for app control
- Single-zone only; not compatible with multi-zone branch boxes
- R-410A refrigerant (not the newer R-32 used in some competitors)
- Indoor unit design is utilitarian; limited color/finish options
- Max pipe length of 66 ft may limit placement on larger properties
Performance
In real-world use, the RXB12AXVJU reaches setpoint quickly thanks to its inverter compressor ramping up to full capacity on startup, then modulating down to maintain temperature within ±1°F. Cooling performance in 95°F ambient conditions meets rated capacity with minimal short-cycling, and the indoor unit’s wide-angle louver distributes air evenly across the room. The modulation is smooth, avoiding the jarring "on-off" feeling common in traditional window AC units.
Heating is where this unit stands out. At 17°F outdoor temperature, it still delivers roughly 60% of rated heating capacity (approx. 7,800 BTU/h), which is sufficient for well-insulated spaces in Zone 4–5 climates without supplemental heat. Defrost cycles are infrequent and brief (typically 5–8 minutes every 60–90 minutes in freezing, humid conditions), and the unit resumes heating promptly afterward. This performance makes it a viable primary heat source for small, airtight studios or sunrooms.
Sound levels match published data: the outdoor unit is unobtrusive at 49 dB(A) from 3 ft away, blending into background noise in suburban settings. The indoor unit’s “Quiet” mode at 19 dB(A) is barely audible in a quiet bedroom, though the “High” fan setting at 41 dB(A) is noticeable during rapid temperature changes. Airflow is adequate for rooms up to 20×25 ft with standard ceiling heights; larger or poorly insulated spaces may feel slight temperature gradients near the far wall.
Dehumidification performance is typical for a mini-split: the “Dry” mode runs the compressor at low speed with reduced fan, removing moisture without overcooling. (For dedicated humidity control, see our GE ADEL50LZ Dehumidifier Buying Guide or check out our detailed GE ADEL50LZ review). In humid climates, it can maintain 50–55% RH at 75°F setpoint during shoulder seasons. This is particularly useful in late spring when temperatures are mild but humidity is high.
How It Works: The Technology Inside
The Daikin RXB12AXVJU operates on the principles of a vapor-compression refrigeration cycle, but utilizes modern inverter technology to optimize efficiency. For those comparing different installation styles and brands, see our comparison of the best mini-splits for small rooms or learn how professional installs differ from DIY kits like the MrCool DIY 24000 BTU Ductless Mini-Split Heat Pump with Wi-Fi (detailed in our buying guide).
Unlike traditional systems that operate at 100% capacity or 0% (on or off), the inverter compressor in the RXB12AXVJU can adjust its speed. When the unit first starts, it operates at high frequency to reach the desired temperature rapidly. As the room approaches the setpoint, the compressor slows down, consuming significantly less electricity and preventing the "overshoot" that often leads to discomfort.In heating mode, the system reverses the flow of refrigerant using a reversing valve. It extracts heat from the outdoor air—even when that air is below freezing—and pumps it indoors. This is achieved through a high-pressure heat exchange process where the refrigerant is compressed to a temperature higher than the indoor air, allowing heat to transfer into the room via the indoor evaporator coil (which now acts as a condenser).
The "Blue Fin" technology mentioned in the specs is more than just a color choice. This hydrophilic coating prevents water droplets from clinging to the fins and protects the aluminum from corrosive salts and acids in the air. This is critical for long-term performance, as salt-air corrosion can lead to refrigerant leaks and reduced heat exchange efficiency over time.
Installation and Setup
Installing the Daikin RXB12AXVJU is a professional-grade task that requires an HVAC technician with EPA 608 certification. Because the unit comes pre-charged with R-410A refrigerant, the installation focuses on the physical placement of the indoor and outdoor units and the creation of a secure refrigerant path.
Installation Tip: Ensure the outdoor unit is mounted on a level concrete pad or sturdy wall brackets. A tilted unit can lead to vibration noise and improper oil return to the compressor, potentially shortening the equipment's lifespan.
The process begins with mounting the indoor unit's backplate to a sturdy wall. A hole is drilled for the line set and electrical wiring to exit. The line set—consisting of a 1/4" liquid line and a 3/8" suction line—is then connected. A critical step is the vacuum process: a technician must use a vacuum pump to remove air and moisture from the copper lines before releasing the refrigerant. Any moisture left in the system can freeze at the expansion valve or contaminate the compressor oil, leading to catastrophic failure.
Electrical setup requires a dedicated 208/230V circuit. When planning your installation, ensure your panel is up to date (see our guide on replacing circuit breakers safely or our comparison of Square D vs Eaton breakers). While planning, it is a good time to inspect your furnace control boards and general components and determine if you need AFCI or standard circuit breakers for your dedicated lines. For detailed guidance, refer to our Honeywell furnace component review, our guide to the best 20-amp circuit breakers, and our comprehensive guide on how to replace a circuit breaker safely at home. With a Maximum Overcurrent Protection (MOP) of 15 A and a Minimum Circuit Ampacity (MCA) of 12.5 A, the RXB12AXVJU is compatible with standard residential electrical panels. Proper grounding and the use of a fused disconnect switch near the outdoor unit are strongly recommended to meet local electrical codes and ensure safety.
Maintenance Guide
To maintain the 12-year warranty and ensure the RXB12AXVJU operates at peak efficiency, a regular maintenance schedule is essential. Neglecting a mini-split often leads to "frozen" coils in winter or "slimy" buildup (biofilm) in summer, which can cause water leaks and odors.
Indoor Unit Care
- Filter Cleaning (Every 2-4 Weeks): The mesh filters in the indoor unit capture dust and pet hair (similar to the high-efficiency filtration found in Filtrete furnace filters). Maintaining high airflow is key to system longevity. Slide them out, vacuum them, or rinse them with lukewarm water. Airflow restriction here forces the motor to work harder and reduces dehumidification.
- Coil Inspection (Seasonal): Every six months, check the evaporator fins for dust buildup. If they appear clogged, use a soft brush or a specialized mini-split cleaning spray.
- Drain Pan Check: Ensure the condensate drain line is clear. If water begins to drip from the front of the indoor unit, the drain is likely clogged with algae. A wet/dry vac can be used to clear the external end of the drain line.
Outdoor Unit Care
- Debris Removal: Keep the area around the RXB12AXVJU clear of leaves, grass clippings, and snow. Blocked airflow forces the compressor to run hotter, reducing SEER2 efficiency.
- Gentle Coil Cleaning: Once a year, use a garden hose (low pressure) to spray dust and pollen off the outdoor coils. Avoid power washers, as they can bend the delicate aluminum fins.
- Visual Inspection: Check the Blue Fin coating and the refrigerant connections for any signs of oil residue, which could indicate a slow leak.
Value for Money Analysis
Priced in the mid-range for 12k BTU single-zone systems, the RXB12AXVJU offers a compelling cost-per-BTU ratio when factoring in its 12-year registered warranty and Daikin’s service infrastructure. When compared to ultra-budget brands, the Daikin offers significantly better build quality and a much more reliable inverter board, which is often the first point of failure in cheap units.
Bosch Ductless Mini-Split Heat Pump 18000 BTU Cold Climate Single Zone, Mitsubishi Ductless Mini-Split Heat Pump 15000 BTU Single Zone, or the Carrier Performance Series Ductless Mini-Split Heat Pump 9000 BTU Single Zone carry similar or higher price tags with comparable efficiency ratings, but often lack the same low-ambient heating specs at this price point. While some premium units boast SEER2 ratings of 22 or 25, the electricity savings over a 16 SEER2 unit are often marginal for a single-zone installation (typically saving only a few dollars per month). For most users, the lower upfront cost of the RXB12AXVJU outweighs the theoretical energy savings of a hyper-efficient model.
