Flotec FP0S1775A Submersible Pump: Complete Buying Guide

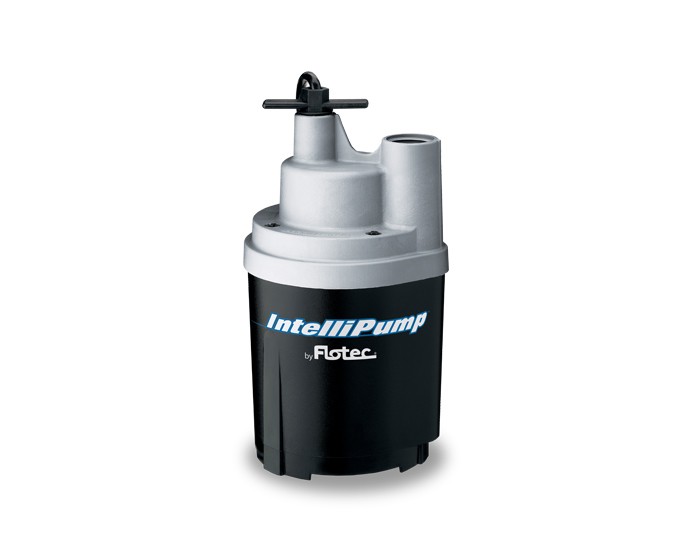

Flotec FP0S1775A — Full Product Overview

Motor & Power Performance

At its heart, the FP0S1775A runs on a 1/4 horsepower, 115-volt, 60 Hz motor drawing approximately 3.5 amps at full load. That's enough grunt to move up to 1,800 gallons per hour (GPH) at zero feet of total dynamic head — meaning when there's virtually no discharge height or pipe friction to fight. In practical basement-drainage scenarios where you might be pumping water up a few feet through a garden hose to a floor drain or exterior, expect real-world flow closer to 1,200–1,500 GPH. That's still fast enough to clear a moderately flooded basement room in well under an hour.

The motor is thermally protected, which is a meaningful feature often overlooked in budget pump comparisons. If the pump runs dry, overheats, or gets blocked, the thermal overload protection trips automatically and the motor shuts off before damage occurs. Once cooled, it resets itself. This self-protecting behavior dramatically extends motor life and gives peace of mind when the pump is running unattended overnight.

Thermoplastic Housing: Durability Without the Weight

Flotec markets the FP0S1775A under its IntelliPump branding — a name that refers to the pump's intelligent float-switch activation system. Flotec chose glass-filled thermoplastic for the FP0S1775A's housing rather than cast iron or stainless steel. That might raise an eyebrow at first, but in the utility-pump category it's genuinely the right call. Thermoplastic is corrosion-proof, lightweight (the pump weighs only about 5 lbs), and completely resistant to the mildly acidic or mineral-rich water that often sits in basements after a storm. Cast iron corrodes, seizes, and adds unnecessary weight when you're hauling the pump down a flight of stairs in an emergency.

The housing is also compact enough — roughly 7.5" × 5.5" × 10" — to fit into tight sump pits and crawl spaces without rearranging the plumbing. A molded carry handle sits on top for easy one-handed deployment, and the power cord (6 ft) will reach a nearby outlet in some setups, but in basement or sump pit deployments the distance to a GFCI outlet is often greater — always have a heavy-duty outdoor-rated extension cord on standby for emergency situations.

Float Switch: Automatic vs. Manual Mode

One of the FP0S1775A's most practical features is its removable automatic float switch. In automatic mode, the float rests on the water surface; when the water level rises enough to lift the float, the switch engages and the pump turns on — then shuts off again once the water recedes. This is ideal for sump pit backup duty or any situation where you won't be physically present to monitor water levels.

Remove the float entirely and plug the pump directly into the outlet and it operates in continuous manual mode — perfect for quickly draining a pool cover, clearing a flooded window well, or emptying a water feature where you want full control over start and stop. Few pumps in this price class offer this dual-mode flexibility without requiring separate purchases or third-party accessories.

Solids Handling & Discharge

The FP0S1775A can pass solids up to 1/8 inch in diameter, meaning it handles the fine silt, small debris, and sediment that typically accompany basement floodwater without clogging. It is not a sewage pump — do not attempt to use it on wastewater with larger solids. The discharge port measures 1-1/4 inches and accepts standard garden hose fittings (with an included adapter), so setup requires no special tools and no trip to the hardware store for fittings.

Who Is the FP0S1775A Best For?

The FP0S1775A is a purpose-built residential and light commercial utility pump. Understanding its ideal applications helps you avoid the frustration of buying a pump that's either overkill or underpowered for your specific situation.

Ideal Use Cases

• Basement flood emergency: The FP0S1775A's core use case. Its 1,800 GPH capacity clears standing water quickly, and the removable float switch lets it run automatically if you need to leave the house.
• Sump pit backup: When your primary sump pump fails during a storm, this unit steps in as a manual or automatic backup with minimal setup.
• Window well drainage: Heavy rain can fill window wells rapidly. The compact body fits easily inside a well and empties it in minutes in manual mode.
• Pool cover draining: Accumulated rainwater on an above-ground or in-ground pool cover can be drained safely without a garden hose siphon.
• Water feature & pond maintenance: Drain ornamental ponds, garden fountains, or birdbaths for cleaning or seasonal storage.
• Construction site dewatering: Light-duty job site water removal after rain events.
• Crawl space water removal: The low-profile body fits into shallow crawl spaces where larger pumps can't go.

Applications to Avoid

• Sewage and wastewater with solid waste larger than 1/8 inch
• Chemical, petroleum, or highly acidic/alkaline liquids
• Deep-well water supply (this is not a well pump)
• Continuous high-volume industrial dewatering
• Saltwater — chlorides can degrade internal components over extended use

Setup & Installation Guide

One of the FP0S1775A's defining advantages is how quickly it goes from box to operational. Here's a step-by-step walkthrough:

Step 1 — Attach the Discharge Hose

Connect a standard 3/4-inch garden hose to the pump using the included adapter, or use a 1-1/4-inch reinforced hose for maximum flow. Route the hose to a floor drain, sump pit, or exterior discharge point at least 10 feet from your foundation. Ensure the hose doesn't kink — kinks dramatically reduce flow and can overstress the motor.

Step 2 — Choose Auto or Manual Mode

Automatic (float switch attached): Lower the pump into the water with the float switch connected. The float will activate the pump when water rises to operating level. Manual mode (float switch removed): Plug the pump directly into a GFCI-protected outlet and it runs continuously until you unplug it.

Step 3 — Lower the Pump into the Water

Use the built-in handle to lower the pump gently into the water. Position it on a flat, stable surface at the lowest point of the area you're draining. Avoid placing it directly against walls where debris could block the intake screen.

Step 4 — Monitor & Shut Down

In manual mode, watch the water level and unplug the pump once you've reached the minimum practical depth (about 2 inches). Running a submersible pump completely dry for extended periods — even with thermal protection — shortens seal life. In automatic mode, the float switch handles shutdown automatically.

Step 5 — Storage After Use

Rinse the pump with clean water, allow it to dry thoroughly, then store it upright in a cool, dry location. Wipe the power cord clean and inspect it for nicks or cracks before storing. A pump in good condition and ready to go is invaluable the next time water intrudes unexpectedly.

Maintenance & Longevity Tips

The FP0S1775A requires minimal maintenance, but a few habits will significantly extend its service life and ensure it's reliable when you need it most.
