Bosch 800 Series 36" Counter-Depth French Door Refrigerator Guide

The Bosch 800 Series 36-Inch Counter-Depth French Door Refrigerator (B36CT80SNS) is a premium appliance engineered for homeowners who want the professional-grade food preservation of a built-in unit with the seamless fit of a counter-depth design. Featuring a dual-compressor system and the FarmFresh System™, it provides precise climate control that keeps perishables fresh significantly longer than standard refrigerators.

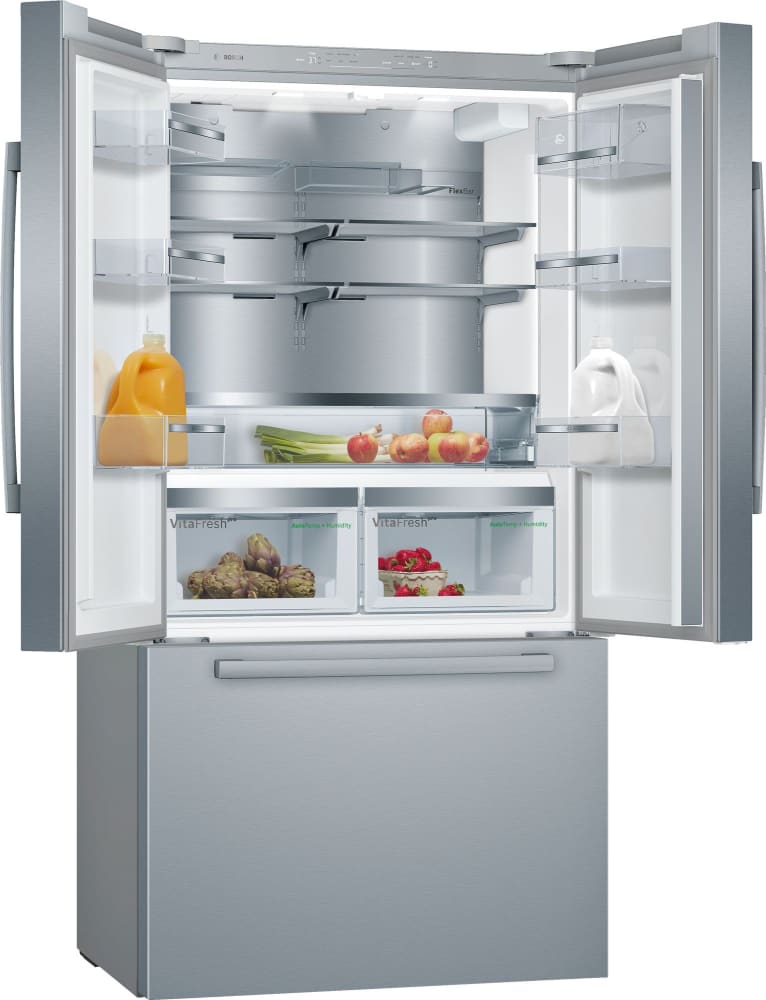

Bosch 800 Series 36-Inch Counter-Depth French Door Refrigerator

The Bosch 800 Series represents a shift in refrigeration philosophy, moving away from the "everything-on-the-door" approach toward a more refined, internal-focused design. By eliminating the external water and ice dispensers, Bosch has not only achieved a cleaner, more architectural look that blends seamlessly with cabinetry but has also reclaimed valuable interior space and improved the energy efficiency of the door seals.

At the heart of this unit is the dual-compressor and dual-evaporator system. In most standard refrigerators, a single compressor pushes air between the freezer and the fridge, often leading to "freezer burn" in the fridge or dry air in the freezer. The B36CT80SNS separates these systems entirely. This means the refrigerator can maintain a high-humidity environment perfect for produce, while the freezer remains a dry, deep-freeze zone, preventing odor transfer and drastically extending the life of your groceries.

For the serious home cook, the VitaFreshPro™ drawers are the standout feature. Unlike basic crispers, these drawers allow you to adjust both temperature and humidity based on what you are storing. Whether you have delicate organic berries or a prime rib steak, the ability to fine-tune the environment means fewer trips to the grocery store and less food waste.

We may earn a commission if you purchase through the links provided in this guide, at no additional cost to you.

The Science of Preservation: How it Works

To understand why the Bosch 800 Series is priced at a premium, one must look at the FarmFresh System™. Most refrigerators use a "forced air" method where a single fan blasts cold air everywhere. This often dries out vegetables and causes "freezer smell" to migrate into the fresh food section. Bosch solves this through a multi-layered architectural approach to cooling.

The Dual Compressor Advantage

By utilizing two separate compressors, the B36CT80SNS creates two independent "climate zones." The refrigerator compressor focuses on maintaining a steady 37°F with high humidity, while the freezer compressor handles the deep freeze. Because they don't share air, the moisture required to keep lettuce crisp doesn't get sucked into the freezer and turned into frost. This independence also allows the machine to operate more efficiently; if only the fridge door was opened, the freezer compressor doesn't necessarily need to ramp up to compensate for the loss of cold air in the other compartment.

Furthermore, dual compressors reduce the wear and tear on a single unit. In standard fridges, the compressor must run at varying intensities to satisfy both the freezer's need for extreme cold and the fridge's need for moderate coolness. By splitting the workload, Bosch ensures that each compressor operates within its ideal efficiency window, which theoretically extends the mechanical lifespan of the appliance.

VitaFreshPro™ and Ethylene Management

FreshProtect™ technology addresses a common problem in food storage: ethylene gas. Many fruits and vegetables release this gas as they ripen, which triggers other nearby produce to ripen (and spoil) faster. The B36CT80SNS uses an ethylene filtration system to scrub this gas from the air. When combined with the VitaFreshPro™ drawers—which allow for precise humidity adjustments—the result is produce that stays "farm-fresh" for up to three times longer than in a traditional crisper.

The precision of these drawers allows users to toggle between a "low humidity" setting (ideal for fruits and vegetables that should not be stored in a high-moisture environment to prevent rot) and a "high humidity" setting (perfect for leafy greens and herbs that wilt when exposed to dry air). This granular control mimics the environments found in commercial-grade refrigeration used by high-end restaurants.

MultiAirFlow™ Distribution

Standard refrigerators often have "cold spots" near the vents and "warm spots" in the doors. MultiAirFlow™ utilizes a network of vents strategically placed throughout the interior. This ensures that whether your milk is on the top shelf or your condiments are in the door bins, the temperature remains consistent within a fraction of a degree. This prevents the premature spoiling of dairy and ensures that chilled beverages are consistently cold.

The distribution system is coupled with an intelligent sensor array. These sensors detect when a door has been left open or when a large amount of room-temperature food has been added, triggering a "fast cool" response to stabilize the internal temperature before the core heat of the food can affect surrounding items.

Installation and Cabinetry Integration

Choosing a counter-depth refrigerator is usually a decision based on aesthetics, but the installation of the B36CT80SNS requires careful planning to ensure both the "built-in" look and the mechanical longevity of the unit.

Required Clearances

For the dual compressors to vent heat efficiently, the B36CT80SNS requires specific breathing room. Insufficient ventilation can lead to the compressors overworking, which shortens the lifespan of the appliance and increases your monthly energy bill.

• Top Clearance: A minimum of 1 inch is required. Do not install a cabinet directly against the top of the unit without verifying the manufacturer's ventilation path.
• Side Clearance: While the unit is designed to fit tight, a 1/8 inch gap on each side is recommended to prevent the unit from rubbing against the cabinetry during the leveling process.
• Rear Clearance: 2 inches is the standard requirement. This allows for the water line to enter without being kinked and ensures the condenser coils have adequate airflow.

Leveling for Performance

A common mistake during installation is failing to level the refrigerator properly. For the B36CT80SNS, it is recommended that the front be slightly higher than the back. This uses gravity to ensure that the heavy French doors swing shut automatically and seal tightly against the gaskets. If the unit leans forward, you may experience "ghost openings" where the door slowly drifts open, leading to temperature spikes and potential food spoilage.

Professional installers typically use a bubble level across the top of the chassis and adjust the leveling legs until a slight backward tilt is achieved. This not only aids in door closure but also ensures that the internal shelving remains stable and doesn't slide during use.

Initial Setup and Long-Term Maintenance

A premium appliance requires a premium maintenance routine. Ignoring the simple upkeep tasks on a Bosch 800 Series can lead to decreased efficiency and potential warranty disputes.

The First 48 Hours

When the B36CT80SNS arrives, do not plug it in immediately. During transport, the refrigerant oil can shift. Letting the unit stand upright for at least 4 hours allows the oil to settle back into the compressor. Once powered on, wait a full 24 hours before loading it with a massive amount of room-temperature groceries; this allows the dual compressors to stabilize the internal environment first.

Loading a refrigerator immediately after installation forces the compressors to run at maximum capacity for an extended period, which can create undue stress on the system. By allowing the unit to reach its set temperature empty, you ensure a more stable transition when food is introduced.

Water and Air Filtration

The UltraClarityPro water filter is a critical component (see our GE GXWH40L whole house water filter guide or explore Culligan whole-house filtration for broader options) for both taste and the longevity of the internal plumbing. Replacing the filter every 6 months prevents sediment buildup (learn more about Culligan whole-house filtration systems), which can slow the water flow and lead to "clogged" internal lines. Similarly, the FreshProtect air filter should be replaced on the same schedule. Because this refrigerator is designed to be an airtight vault for food, a saturated air filter will lose its ability to neutralize ethylene gas and odors, compromising the benefits of the FarmFresh system.

Failure to replace filters can lead to a noticeable drop in water pressure at the internal dispenser and a return of "fridge odors," which are often just the result of the carbon filter reaching its maximum absorption capacity. For those looking to improve water quality before it even reaches the fridge, consider a GE GXWH40L whole house water filter system for professional-grade filtration.

Condenser Coil Care

Dust, pet hair, and lint are the enemies of the compressor. Every 6 to 12 months, use a vacuum with a narrow attachment to clean the condenser coils located at the bottom rear of the unit. A clean coil allows heat to dissipate quickly, reducing the load on the compressor and keeping the unit's energy consumption within its Energy Star rating.

In homes with pets or high dust levels, this should be done quarterly. When coils are coated in dust, the compressor has to work twice as hard to expel heat from the interior, which can lead to overheating and a significant increase in noise levels as the fans ramp up to compensate.

Detailed Buyer's Guide: Capacity vs. Depth

One of the most confusing aspects of purchasing a refrigerator is the "Counter-Depth" designation. For the Bosch 800 Series, this is a primary selling point, but it requires a trade-off in internal volume.

Understanding Counter-Depth

A standard-depth refrigerator typically projects 30 to 36 inches from the wall, meaning it sticks out past your kitchen counters, often creating a "bottleneck" in the kitchen walkway. A counter-depth model like the B36CT80SNS is designed to align with the front of your base cabinets (usually 24-25 inches deep), with only the doors and handles protruding. This creates the "built-in" look that is highly coveted in modern kitchen design—often paired with a high-end faucet like the Kohler Artifacts K-72759-VS MOEN Chateau 7430 (see our MOEN Chateau 7430 buying guide for installation tips). For those completing a premium kitchen suite, pairing this with a GE Profile 36-Inch Induction Cooktop can further enhance the sleek aesthetic.

The Capacity Trade-off

Because the chassis is shallower, the interior volume is reduced. The Bosch 800 Series offers approximately 21 cubic feet of space. For comparison, a full-depth French door refrigerator of the same width often provides 25 to 30 cubic feet. This means you lose space primarily in the depth of the shelves and the freezer drawers.

To mitigate this, Bosch has optimized the interior layout. By moving the water dispenser inside and refining the drawer slides, they maximize every available inch. However, buyers must evaluate their shopping habits: if you buy in bulk from warehouse clubs, you may find the 21 cu. ft. limiting. If you prefer fresh, frequent trips to the market, this capacity is ideal.

Comparison of Cooling Architectures

To determine if the Bosch 800 Series is the right investment, it helps to compare its internal architecture with other common refrigerator types.

Who Should Choose the Bosch?

The B36CT80SNS is the ideal choice for the "Quality-First" buyer, though those comparing counter-depth options might also consider the KitchenAid Counter-Depth French Door Refrigerator or the premium Café Smart 4-Door French Door Refrigerator. If you buy high-end organic produce, artisanal cheeses, and expensive meats, the investment in the dual-compressor system pays for itself by reducing waste. It is also the perfect fit for those who find the "bulky" look of traditional refrigerators disruptive to their kitchen's design.

Additionally, users who are sensitive to noise will appreciate the Bosch. Because the dual compressors are tuned for efficiency rather than raw power, the "hum" of the refrigerator is significantly lower than that of a single-compressor unit working overtime to cool a massive interior.

Who Should Look Elsewhere?

If you have a household of 5+ people and do the bulk of your shopping once a month, 21 cubic feet may feel restrictive. Families who rely heavily on an external water dispenser for quick refills of sports bottles may find the internal-only design frustrating. In those cases, a full-depth model like the Frigidaire Gallery French Door Refrigerator, LG French Door Smart Refrigerator, or the Samsung 28 cu. ft. 4-Door French Door Refrigerator or the GE Profile Large Capacity French Door Refrigerator would be a more practical choice.

Potential Pitfalls and Troubleshooting

Even a premium appliance can have "quirks" that owners mistake for defects. Understanding these can save you a costly s
