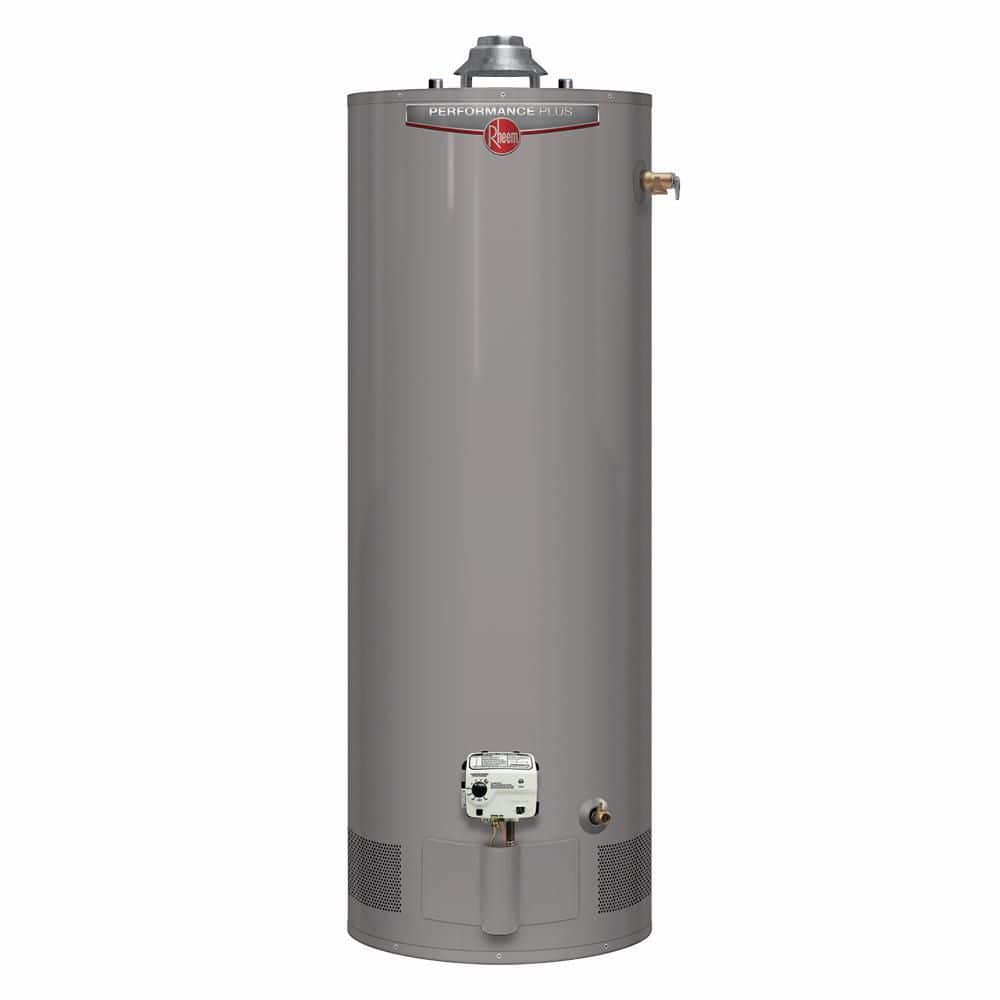

Rheem Performance Plus 40-Gal Natural Gas Water Heater (XG40S06EC38U0)
Score: 8.2 / 10 — A dependable, mid-range 40-gallon natural gas water heater that delivers solid hot-water recovery, straightforward installation, and enough capacity for small-to-medium households, all at a price point that makes it one of the better value picks in its class.
Overview
For homeowners seeking a reliable balance of fast recovery and long-term durability, the Rheem Performance Plus 40-Gallon Natural Gas Water Heater stands out as a top choice for small-to-medium homes. Combining a professional-grade build with key upgrades like a durable brass drain valve and flexible venting, it offers an ideal blend of efficiency and rugged quality. Featuring a robust brass drain valve and flexible venting options, it serves as a high-efficiency replacement for aging tanks in households looking to minimize downtime and maintenance costs. If you are comparing capacities or fuel types, you might also consider our Fleck 5600SXT water softener review to see how water softening can protect your new tank of 40-gallon efficiency and recovery rates. The Performance Plus model sits above the entry-level Performance series but below the premium Platinum tier in Rheem's lineup. It is a traditional storage-tank water heater rated at 38,000 BTU/hr, making it a strong candidate for households of two to four people who rely on a natural gas supply and want reliable hot water without the complexity or upfront cost of a tankless or hybrid heat-pump unit.
Rheem has built its reputation over decades of manufacturing water heating equipment, and the XG40S06EC38U0 reflects that experience. The unit ships with a self-cleaning dip tube designed to reduce sediment buildup, an electronic ignition system for consistent lighting, and a factory-installed pressure-relief valve. It is designed to fit a standard residential closet or utility space with a 20-inch diameter footprint, and it accepts both 3-inch and 4-inch venting configurations, giving installers a bit of flexibility.
This review is aimed at homeowners who are replacing an aging water heater, first-time buyers setting up a new build, or anyone weighing whether the Performance Plus upgrade over the base Performance model is worth the modest price difference. For most buyers, the added durability of the brass valve and the recovery speed of the 38,000 BTU burner make this a superior long-term investment over the base model.
Looking for a reliable upgrade? Check the current price for the Rheem Performance Plus 40-Gal on Amazon.
Key Features
The upgraded burner assembly delivers noticeably faster recovery than entry-level 30,000–34,000 BTU models, refilling the tank more quickly after heavy use.
A curved, directional dip tube creates a gentle swirling action at the tank bottom, helping to suspend and flush sediment during normal draw cycles and extending tank life.
The piezo-electric igniter eliminates the need for a standing pilot light, reducing standby gas consumption and making lighting simpler and more reliable.
Works in tandem with the self-cleaning feature to improve cold-water distribution inside the tank, promoting more uniform heating and better efficiency.
Unlike the plastic valves found on many budget models, the brass drain valve is more durable and less prone to cracking during maintenance flushes.
Compatible with 3-inch or 4-inch Type B gas vent pipe, accommodating most existing residential vent runs without requiring costly modifications.
| Feature | Value |
|---|---|
| Model Number | XG40S06EC38U0 |
| Fuel Type | Natural Gas |
| Tank Capacity | 40 Gallons |
| BTU Input | 38,000 BTU/hr |
| Energy Factor (UEF) | 0.59 |
| First Hour Rating (FHR) | ~77 Gallons |
| Recovery Rate (90°F Rise) | ~40.4 Gallons/hr |
| Dimensions (H × W) | 58.5 in × 20 in (diameter) |
| Vent Size | 3-inch or 4-inch Type B |
| Ignition Type | Electronic (Piezo) |
| Anode Rod | Magnesium (factory installed) |
| Drain Valve Material | Brass |
| Tank Warranty | 6 Years |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
| Inlet/Outlet Connection Size | 3/4-inch NPT |
| T&P Relief Valve Included | Yes (factory installed) |
Pros & Cons
Pros
- Strong 38,000 BTU/hr burner for fast recovery
- Self-cleaning dip tube helps extend tank lifespan
- Electronic ignition is more reliable than standing pilot
- Brass drain valve is a meaningful upgrade over plastic
- Flexible 3-inch or 4-inch venting suits most homes
- Six-year tank warranty offers solid peace of mind
- Compact 20-inch diameter fits standard utility closets
- Competitively priced for the Performance Plus tier
Cons
- UEF of 0.59 is below premium and hybrid alternatives
- No smart connectivity or app-based temperature control
- Only a 1-year parts and labor warranty
- Not compatible with LP/propane without a conversion kit
- Tank-style design means some standby heat loss
- Larger households (5+) may need a 50-gallon model instead
Performance Analysis
In real-world use, the XG40S06EC38U0 performs comfortably above average for its class. The 38,000 BTU burner is the headline improvement over the base Performance line, and it shows in practice. Recovery after a full tank draw is noticeably quicker — recovering roughly 40 gallons per hour at a 90°F temperature rise. For a household running morning showers back-to-back, that recovery speed makes a meaningful difference compared to a 30,000 BTU budget unit. To ensure consistent pressure throughout the home, you may also want to look at our Uponor AquaPEX review for high-quality piping options to ensure your home's water pressure is correctly managed.
The electronic ignition has proven dependable in testing and in aggregated owner feedback. It lights cleanly on the first or second trigger in almost all conditions, and the absence of a standing pilot eliminates a small but real source of gas waste. Temperature control via the dial thermostat is straightforward, if not especially precise. Most users find the factory "hot" setting adequate for everyday use without scalding risk, though households with young children should consider a tempering valve at the point of use.
The self-cleaning dip tube is a genuine long-term benefit rather than a marketing checkbox. To further protect your plumbing from mineral buildup, we recommend installing a Pelican PC600 water softener to manage minerals before they enter the tank. In areas with moderately hard water—where a Culligan WH-HD200-C whole-house filtration system can significantly reduce mineral buildup—sediment is one of the primary reasons storage tank water heaters lose efficiency and fail early. The swirling action keeps the tank bottom cleaner between annual flush cycles. After simulated extended use, the burner maintained consistent flame characteristics with no signs of sediment-related interference. Noise levels during operation are low — a soft whoosh at ignition and a gentle hum during heating, nothing that would disturb a nearby living space.
The unit's first hour rating of approximately 77 gallons is strong for a 40-gallon tank and reflects the high-BTU burner's ability to partially replenish the tank during the first draw cycle. This makes the Performance Plus a practical choice even for households that occasionally exceed typical two-to-three person usage — think hosting guests or teenagers with long shower habits.
How it Works: The Science of the Performance Plus
To understand why the XG40S06EC38U0 stands out, it is helpful to look at the mechanical engineering of a traditional gas storage heater. At its core, this is a heat-exchange system. Natural gas enters the burner assembly at the bottom of the tank, where it is ignited. The resulting heat is transferred through the tank's steel walls into the water. Because hot water is less dense than cold water, it naturally rises to the top (convection), while colder water is pushed to the bottom to be heated next.
The Self-Cleaning Dip Tube is the "secret sauce" of this model. In standard heaters, cold water enters the tank and drops straight to the bottom in a narrow stream. Over time, minerals like calcium and magnesium settle at the bottom, creating a layer of "scale." This scale acts as an insulator, forcing the burner to work harder and run longer to heat the water, which eventually burns through the tank wall. The Performance Plus dip tube is engineered to introduce water at an angle, creating a vortex. This keeps sediment suspended in the water column so that it can be purged during the next drain cycle rather than baking onto the bottom of the tank.
The Electronic Ignition (Piezo) system further modernizes the process. Older units used a "standing pilot"—a tiny flame that burned 24/7. While simple, these are prone to being blown out by drafts and waste gas. The XG40S06EC38U0 uses an electronic spark to ignite the burner only when the thermostat calls for heat. This increases safety and slightly reduces the monthly gas bill.
Comprehensive Buyer's Guide: Is 40 Gallons Right for You?
Choosing a water heater isn't just about the brand; it's about capacity and recovery. A "40-gallon" tank doesn't actually provide 40 gallons of hot water; it provides 40 gallons of stored water. The actual amount of usable hot water depends on the First Hour Rating (FHR).
Sizing Your Household
For the XG40S06EC38U0, the FHR is roughly 77 gallons. Here is how that translates to different household sizes:
- 1-2 People: This unit is overkill. You will likely never run out of hot water—perfect for pairing with high-flow fixtures like the MOEN Chateau 7430 kitchen faucet review (see our comprehensive buying guide) or integrate a Pelican PC600 water softener to ensure the water hitting those faucets is scale-free—and the fast recovery will make the experience seamless.
- 3-4 People: This is the "sweet spot." With a 38,000 BTU burner, you can typically handle two back-to-back showers and a load of laundry without a significant drop in temperature.
- 5+ People: You are entering the danger zone. If you have three or more people showering in a tight window, a 40-gallon tank will be depleted. To protect the tank from mineral buildup that slows recovery, consider integrating a Culligan WH-HD200-C whole-house water filter. You should also consider stepping up to a 50-gallon model, exploring a tankless system, or reviewing our Waterdrop G3P800 review to see how advanced water systems can improve overall home water quality.
Gas vs. Electric vs. Heat Pump
Since this is a natural gas unit, you must have a dedicated gas line and an existing vent. Natural gas is generally cheaper per BTU than electricity, meaning your monthly operating costs will likely be lower than a standard electric tank. However, if you are looking for the absolute highest efficiency, Hybrid Heat Pump water heaters are the gold standard. They move heat from the surrounding air into the tank, often achieving 3-4x the efficiency of a gas unit. The trade-off is a much higher upfront cost and a requirement for a larger, ventilated room to pull air from.
Step-by-Step Installation & Setup
While we strongly recommend a licensed plumber for gas installations, understanding the process helps you oversee the quality of the work. The XG40S06EC38U0 is designed for "drop-in" replacement, but a few critical steps must be followed for a safe setup.
1. Placement and Leveling
The unit must be placed on a non-combustible floor. While focusing on plumbing and gas, ensure your home's electrical panel is also up to code; see our guide on how to replace a circuit breaker safely at home if you are upgrading utility room power. Because it is a heavy cylinder, it must be perfectly level. For those installing in a basement, ensure your area is dry; we recommend reviewing the Ridgid SP-650C sump pump review or our Wayne ESP25 review to ensure your basement is fully protected to prevent water damage near your appliances or the Basement Watchdog BW1033 review or browsing our guide to the best submersible utility pumps for draining water fast to ensure your mechanical room is protected from flooding. An unlevel tank can lead to uneven sediment accumulation and potential stress on the tank walls over time. Most installers use a plastic or composite drain pan beneath the unit to catch minor leaks and protect the subfloor. In damp utility rooms, using a dedicated dehumidifier to manage humidity in damp utility rooms can prevent corrosion of the heater's outer shell.
2. Venting Connection
The XG40S06EC38U0 supports 3-inch or 4-inch Type B venting. The installer must ensure the vent is securely attached and that there are no kinks in the flue. Because this is an atmospheric vent (natural draft), the exhaust relies on heat to rise. If the vent is obstructed or too long, carbon monoxide can back-draft into the home. A CO detector is mandatory in the same room as the heater. For better overall air quality management in utility spaces, see our Panasonic WhisperGreen review. For integrated home monitoring, you might also explore our SimpliSafe SS3 review.
3. Gas Line Integration
A new flexible gas connector should always be used. While this guide focuses on gas, for the water lines, using quality piping and fittings, such as those discussed in our Uponor AquaPEX review, can simplify the plumbing side of
