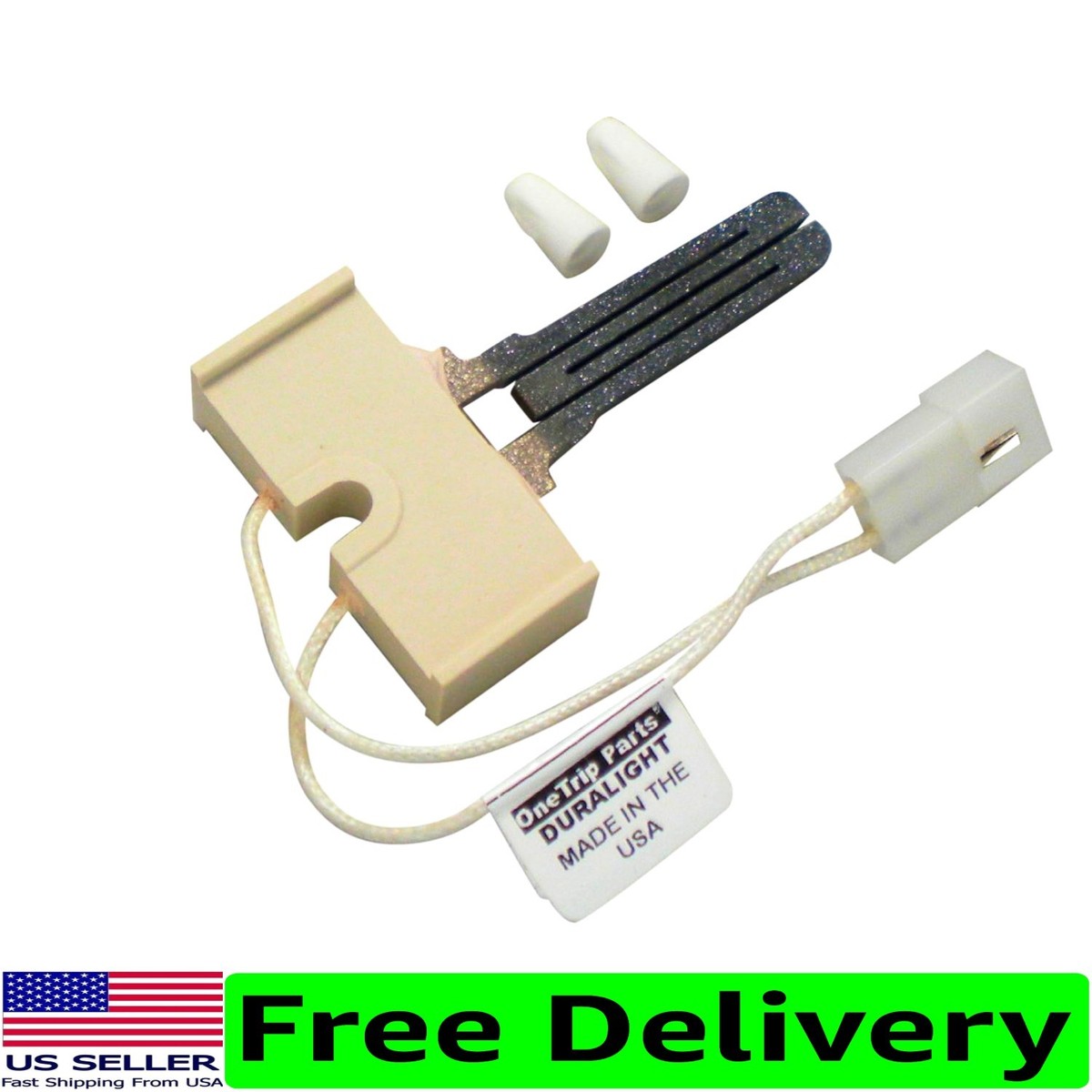

Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004)
Score: 8.6/10 — An essential DIY furnace repair part, the LH33ZS004 replacement igniter is a practical solution for restoring dependable ignition on compatible Carrier, Bryant, and Payne systems.
We may earn a commission from qualifying purchases made through our links.
Carrier Bryant Payne LH33ZS004 Overview
The Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004) is the industry-standard solution for homeowners needing to restore reliable ignition to compatible Carrier, Bryant, and Payne gas furnaces. When your heating system fails to light, this OEM-spec hot surface igniter is the most efficient way to resolve 'no-heat' calls and get your furnace back online quickly.
Its job is simple but essential: heat rapidly and reliably so the gas burner assembly can ignite when the furnace calls for heat. This component acts as the catalyst for the entire heating cycle, converting electrical energy into intense thermal energy to spark the combustion process.
Restore your heating system's reliability with the Carrier Bryant Payne Furnace Hot Surface Igniter Replacement.
This is not a flashy smart-home upgrade, but it is the kind of component that can make the difference between a working heating system and a cold house. (While focusing on your furnace, don't forget to maintain your basement's health—check out our Ridgid SP-650C Sump Pump guide for wet basements). For homeowners dealing with ignition failures, intermittent startup issues, or a cracked/worn igniter (similar to how we analyze air filtration in our Filtrete MERV-12 filter review), the Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004) offers a targeted repair option instead of replacing larger furnace assemblies unnecessarily. When a furnace fails to kick on, the igniter is often the first point of failure due to the extreme thermal stress it undergoes during every single cycle.
It is best suited for experienced DIYers who understand furnace safety and electrical handling, or for qualified HVAC technicians performing a standard service replacement. Because igniters are fragile and furnace compatibility matters, proper diagnosis and careful installation are key to getting the best result. Investing in a quality replacement part ensures that your system maintains its efficiency and safety standards without the need for a premature total system overhaul. If you are considering a more modern heating alternative, check out our Carrier Mini-Split Heat Pump Buying Guide.
Key Features
Built as a precise replacement hot surface igniter for compatible Carrier, Bryant, and Payne furnace systems using the LH33ZS004 part specification for a seamless fit.
Engineered to reach ignition temperatures quickly, ensuring the burner assembly lights efficiently and reducing the time the gas valve remains open before combustion.
Constructed from advanced silicon nitride or silicon carbide, materials specifically chosen for their ability to withstand repeated, extreme thermal cycling without immediate degradation.
Eliminates the "no-heat" scenarios caused by burnt-out igniters, restoring the dependability of the gas heating system without requiring major modifications.
Designed for easy access and replacement, making it a standard choice for professional service calls and experienced home maintenance.
Fits precisely within the burner/ignition area of supported models, ensuring proper alignment with the gas flow for optimal lighting.
| Feature | Value |
|---|---|
| Product Name | Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004) |
| Model Number | LH33ZS004 |
| Category | Furnace Parts & Components |
| Part Type | Hot Surface Igniter Replacement |
| Compatible Brands | Carrier, Bryant, and Payne |
| Primary Function | Ignites the burner assembly in a gas furnace |
| Typical Material | Silicon Nitride or Silicon Carbide |
| Installation Type | Direct Replacement Service Part |
| Recommended Installer | Qualified HVAC Technician or Experienced DIYer |
| System Type | Gas Furnace Heating System |
| Compatibility Note | Verify furnace model and original part number before purchase |
Pros & Cons
Pros
- Exact fit for compatible Carrier, Bryant, and Payne gas furnaces.
- Cost-effective alternative to replacing the entire furnace unit.
- Fast heat-up time reduces ignition lag.
- Uses industrial-grade ceramics for thermal endurance.
- Simple "plug-and-play" installation for those with electrical knowledge.
Cons
- Extremely fragile; can break if touched or bumped during install.
- Requires specific model compatibility; not a universal part.
- Does not address issues with gas valves or control boards.
- Contaminated by skin oils, which can lead to premature failure.
Performance
In real-world use, a hot surface igniter is judged by consistency. The Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004) is designed to heat rapidly during the furnace ignition sequence, allowing the burner assembly to light the moment the control board calls for heat. When matched to the correct furnace model and installed properly, it restores the quick, predictable startup behavior expected from a healthy gas furnace.
The biggest performance benefit is the restoration of reliability. A failing igniter often manifests as "intermittent" heat—where the furnace might take two or three tries to light, or fails entirely on a very cold morning. Replacing the old component with the LH33ZS004 resolves these symptoms when the igniter is the confirmed fault. It is especially useful when the existing igniter is visibly cracked or no longer glows a bright orange/white during the ignition cycle.
One critical performance aspect is the material science. The use of silicon nitride allows the part to expand and contract rapidly without cracking. However, this performance is dependent on the installer's care. Because the element is a precision ceramic, any physical stress during installation can create micro-fractures that lead to a "dead on arrival" part or a shortened lifespan. When handled correctly, the LH33ZS004 provides a stable, high-temperature spark that ensures the gas mixture ignites cleanly without creating a dangerous buildup of unburnt gas.
The Science of Hot Surface Ignition
To understand why the Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004) is critical, one must understand the difference between "standing pilots" and "hot surface ignition." Older furnaces used a standing pilot—a small flame that burned 24/7. Modern, high-efficiency furnaces use the LH33ZS004 method, which is safer and more energy-efficient.
When your thermostat signals for heat, the furnace control board sends a high-voltage current through the LH33ZS004 igniter. Because of the material's electrical resistance, this energy is converted into heat. Within seconds, the igniter reaches a temperature high enough to glow white-hot. Only after the igniter reaches this specific temperature does the gas valve open, releasing gas into the burner area. The heat from the igniter then triggers the gas to ignite instantly.
This process prevents "delayed ignition," which is when gas builds up in the combustion chamber before lighting, potentially causing a loud "boom" or a rollout of flames. The precision timing of the LH33ZS004 ensures that the gas is ignited the millisecond it enters the chamber, maintaining the safety and efficiency of your home heating system. This rapid thermal response is made possible by the silicon nitride composite, which has a much lower thermal mass than older metal-based igniters, allowing it to reach 2,000°F+ almost instantly.
Buyer's Guide: Is the LH33ZS004 Right for You?
Choosing the right ignition part requires more than just a search for "furnace igniter." Because furnace designs vary wildly between brands and years, you must verify three primary points before purchasing the Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004).
1. Model Number Verification
The "LH33ZS004" is a specific part number. You should check the label on your furnace's blower compartment or the part number stamped on the old igniter itself. Using a part that "looks" similar but has a different resistance rating can lead to the control board failing to detect the igniter, or worse, the part burning out in a matter of days. If the ohmic value of the igniter is incorrect, the control board may throw a "lockout" error code, assuming the part is faulty even when it is brand new.
2. Brand Ecosystem
This part is engineered specifically for Carrier, Bryant, and Payne systems (for more on modern heating alternatives, explore our Carrier Mini-Split Heat Pump Buying Guide for more modern heating alternatives). While these brands often share a parent company and engineering standards, you should not attempt to force this part into a Lennox, Rheem, or Trane system unless a cross-reference guide specifically confirms compatibility. Using an incompatible igniter can result in poor alignment with the burner ports, leading to inefficient lighting or potential safety hazards.
3. Symptom Analysis
Before buying, ensure your symptoms match an igniter failure. Typical signs of a dead LH33ZS004 include:
- The furnace blower starts, but the burners never light.
- You can see the igniter attempting to glow, but it's dim or not glowing at all.
- The furnace "clicks" but fails to ignite.
- The igniter has a visible crack or a "burnt" black spot on the element.
If your furnace is lighting but then shutting off after 10 seconds, the problem is likely a dirty flame sensor or a failing (potentially requiring a Honeywell Home Universal Electronic Furnace Fan Timer Control Board or a replacement White-Rodgers Universal Integrated Furnace Ignition Control Board, not a bad igniter. A flame sensor detects the fire; the igniter creates it. Mistaking one for the other can lead to unnecessary part replacement and continued system downtime. For those replacing the entire control sequence, we recommend the White-Rodgers Universal Integrated Furnace Ignition Control Board.
Installation and Setup Process
While professional installation is recommended, understanding the process helps homeowners verify that the work is being done correctly. The installation of the Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004) follows a strict safety protocol.
Step-by-Step Implementation
Step 1: Power Down
Never work on a furnace with the power on. Locate the furnace power switch (usually a toggle switch on the side of the unit) and turn it off. For extra safety, shut off the circuit breaker at the main panel. This prevents accidental shocks and protects the sensitive control board from surges.
Step 2: Gas Shut-off
While not always strictly required for igniter replacement, turning off the gas supply valve is a best practice to ensure no gas leaks occur while the burner assembly is being accessed. Always sniff for gas before initiating the electrical cycle after a repair.
Step 3: Accessing the Igniter
Remove the furnace panels. Locate the igniter assembly, which is typically positioned near the burners. Carefully unplug the electrical connector from the control board. Do not pull by the wires; pull by the plastic connector housing to avoid stressing the wiring harness.
Step 4: Removal and Inspection
Unscrew the mounting bracket holding the old LH33ZS004. As you remove it, inspect the surrounding area for soot or corrosion. If the old igniter is broken, ensure no ceramic shards have fallen into the burner ports, as these can obstruct gas flow and cause uneven heating.
Step 5: Handling the New Part
This is the most critical phase. When removing the LH33ZS004 from its packaging, do not touch the heating element with your bare fingers. The oils from human skin can contaminate the silicon nitride surface. These oils create "hot spots" that cause the material to overheat and crack prematurely, significantly shortening the lifespan of the part. If you accidentally touch the element, clean it gently with a high-percentage isopropyl alcohol wipe and let it dry completely before installation.
Step 6: Mounting and Connection
Carefully slide the new igniter into the bracket, ensuring it is aligned perfectly with the burner ports. Tighten the mounting screws firmly but do not overtighten; over-torquing the screws can put mechanical stress on the ceramic element, leading to a crack. Reconnect the electrical harness to the control board, ensuring the click of the locking tab is heard.
Step 7: Testing the Cycle
Restore power to the unit and set the thermostat to a temperature high enough to trigger a heat call. Observe the ignition sequence. You should see the LH33ZS004 glow bright orange or white almost immediately, followed by the ignition of the burners. If the furnace fails to light, immediately shut off the power and re-verify the connections.
Maintenance and Longevity
Unlike a filter or a blower motor, the Carrier Bryant Payne Furnace Hot Surface Igniter Replacement (LH33ZS004) is not a part that can be "serviced" in the traditional sense. Once the ceramic element is cracked or the resistance is too high, it must be replaced. However, there are several ways to maximize the lifespan of your new igniter.
Avoiding Thermal Shock
Rapid, repeated cycling of the furnace (known as "short cycling") is the primary enemy of the LH33ZS004. Short cycling occurs when the furnace turns on and off every few minutes. This puts immense thermal stress on the igniter, forcing it to heat and cool rapidly. Ensuring your ductwork is clear and your Filtrete MERV-12 20x25x1 Air Filter is changed regularly prevents the furnace from overheating and short cycling, which in turn protects the igniter from premature failure.
Managing Debris and Dust
Dust and debris can accumulate around the burner assembly. If dust settles on the igniter element, it can create an uneven heating surface. During your annual HVAC maintenance, ask your technician to gently blow out the combustion chamber with compressed air. This ensures that the LH33ZS004 can
