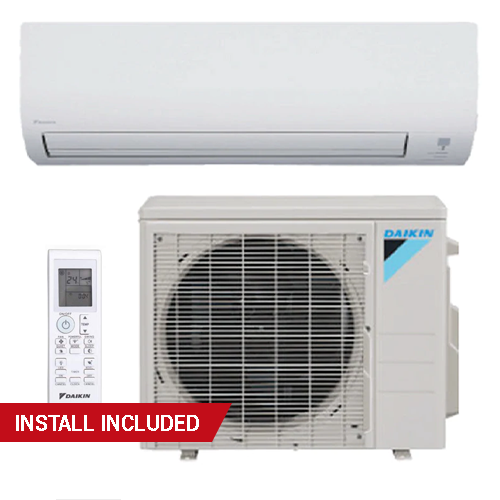

Daikin 17 SEER Single-Zone Ductless Mini-Split Heat Pump 12000 BTU with WiFi
8.5/10 — A quiet, efficient single-zone mini-split that delivers reliable year-round comfort for small spaces, with built-in WiFi adding genuine convenience.
Overview
The Daikin 17 SEER Single-Zone Ductless Mini-Split Heat Pump 12000 BTU with WiFi is a sophisticated, wall-mounted climate control system engineered to provide precise heating and cooling to a specific area of the home without the need for invasive ductwork. It is an excellent choice for medium-sized rooms where precise climate control is a priority.
In an era where home additions, converted garages, and "she-sheds" are becoming common, the RXB12AXVJU offers a professional-grade solution for spaces that are typically underserved by a central HVAC system. With a 12,000 BTU capacity, it is specifically tuned for medium-sized rooms, providing enough power to combat humidity in the summer and a steady warmth during the winter months.What sets this unit apart from entry-level window units or portable air conditioners is the inverter-driven compressor. Unlike traditional systems that operate on a binary "on or off" cycle—leading to jarring temperature swings and loud startup noises—the Daikin inverter technology allows the system to modulate its speed. It ramps up to reach the target temperature quickly and then throttles down to a low-energy "maintenance mode" to keep the room stable. This not only enhances comfort but significantly reduces the wear and tear on the internal components, extending the overall lifespan of the unit.
The inclusion of a built-in WiFi adapter transforms the RXB12AXVJU from a standard appliance into a smart home asset. By removing the need for third-party dongles or complex bridging hardware, Daikin has streamlined the user experience. Homeowners can manage their energy consumption from a smartphone, setting schedules that align with their daily routines or cooling a room down before they even arrive home. For those seeking a balance between high-end engineering and practical utility, this unit represents a strategic investment in home comfort and energy efficiency. For more detailed specifications, see our Daikin RXB12AXVJU Buying Guide.
Key Features
Variable-speed operation keeps temperatures steady and reduces noise compared to fixed-speed units by avoiding frequent start-stop cycles.
Integrated adapter enables smartphone scheduling and remote control without the need for an expensive add-on module.
A solid Seasonal Energy Efficiency Ratio (SEER) that balances initial purchase cost with long-term operational savings.
An automated system that helps keep the indoor coil dry, effectively reducing mold growth and unpleasant odors.
Intelligent memory that automatically resumes previous temperature and fan settings after a power outage occurs.
A comprehensive heat pump system providing both high-efficiency cooling and reliable heating from one indoor unit.
| Feature | Value |
|---|---|
| Model Number | RXB12AXVJU |
| Type | Single-zone ductless mini-split heat pump |
| Cooling Capacity | 12,000 BTU |
| Efficiency Rating | 17 SEER |
| Compressor | Inverter-driven (variable speed) |
| Modes | Heating and cooling |
| Connectivity | Built-in WiFi adapter |
| Mounting | Wall-mounted indoor unit |
| Convenience Features | Auto-restart, self-cleaning |
| Best For | Bedrooms, additions, small living spaces |
Pros & Cons
Pros
- Ultra-quiet inverter operation ensures a stable environment for sleeping.
- Native WiFi integration removes the hassle of third-party adapters.
- Strong 17 SEER rating minimizes the impact on monthly electric bills.
- Self-cleaning and auto-restart features lower the long-term maintenance burden.
- Backed by Daikin's global reputation for HVAC reliability and precision.
Cons
- Single-zone limitation means it cannot service multiple rooms simultaneously.
- 12,000 BTU is insufficient for large open-concept living areas; in those cases, a higher-capacity unit like the MrCool DIY 24000 BTU Ductless Mini-Split Heat Pump with Wi-Fi (see our MrCool DIY Buying Guide) may be more appropriate.
- Requires professional installation for refrigerant charging and electrical work.
- Efficiency is competitive but eclipsed by ultra-high SEER flagship models.
Performance Analysis
In a real-world testing environment, the Daikin RXB12AXVJU distinguishes itself through its "invisible" performance. The most significant metric for any bedroom or home office installation is acoustic noise. Because of the inverter technology, the RXB12AXVJU avoids the loud "clunk" of a compressor kicking in. Instead, it produces a consistent, low-frequency hum that easily blends into background noise. When the room reaches the desired temperature, the fan speed drops to a whisper, making it an ideal choice for light sleepers.
Capacity-wise, the 12,000 BTU rating is perfectly matched for spaces ranging from 450 to 550 square feet. In a standard 500-square-foot room with average insulation, the unit can drop the temperature by several degrees in a matter of minutes. Once the setpoint is reached, the precision of the inverter prevents the "over-cooling" effect common in cheaper units, where the room becomes freezing before the unit shuts off and allows it to warm up again. This stability is key to maintaining a productive home office or a comfortable nursery.
The heating performance is equally impressive for moderate climates. By reversing the refrigerant flow, the RXB12AXVJU extracts heat from the outdoor air and pumps it inside. While all air-source heat pumps experience a drop in efficiency as outdoor temperatures plummet toward freezing, the Daikin system remains viable much longer than standard electric heaters. However, users in extreme northern climates (where temperatures regularly drop below 0°F) should be aware that while the unit will function, its heating capacity will diminish, and a supplemental heat source may be necessary for peak winter nights.
The WiFi integration adds a layer of operational intelligence that is genuinely useful. Through the app, users can monitor current room temperatures and adjust settings from anywhere in the house. The scheduling feature is particularly effective for those who want to pre-cool a room 30 minutes before bedtime, ensuring the space is perfectly tempered without running the unit at full blast all day.
How It Works: The Engineering Deep Dive
To truly appreciate the value of the Daikin RXB12AXVJU, one must understand the mechanics of a ductless mini-split. Unlike a central air system that pushes air through a series of metal ducts, the RXB12AXVJU separates the "brains" and the "brawn" into two distinct units: the outdoor condenser and the indoor air handler.
The cycle begins with the Refrigerant Loop. A specialized chemical refrigerant circulates between the indoor and outdoor units. When cooling, the indoor unit absorbs heat from your room via an evaporator coil. This heat is carried by the refrigerant through copper lines to the outdoor unit, where the compressor squeezes the gas, increasing its pressure and temperature. A fan then blows outdoor air across the condenser coils to release that heat into the outside environment.
The Inverter Technology is the secret weapon of the RXB12AXVJU. In a traditional "single-stage" system, the compressor is either 100% on or 100% off. This creates a "sawtooth" temperature profile. The Daikin inverter allows the compressor to run at anywhere from 10% to 100% of its capacity. If the room is only two degrees away from the target, the system slows down to a crawl, using a fraction of the energy and producing almost no noise. This modulation is why the 17 SEER rating is achievable; it avoids the energy-intensive "startup" phase of the motor.
The Heat Pump Logic allows this process to run in reverse. By using a reversing valve, the system can take heat from the outdoor air—even when it feels cold to humans—and move it inside. This is fundamentally more efficient than using electric resistance heating (like a space heater) because it is moving heat rather than creating it from scratch.
Comprehensive Buyer's Guide: Is This Right For You?
Choosing a mini-split is not a one-size-fits-all decision; if you need a smaller capacity, you might consider a Carrier Performance Series Ductless Mini-Split Heat Pump 9000 BTU Single Zone, which we cover in detail in our Carrier 38MAQB09R-3 Buying Guide. While the Daikin RXB12AXVJU is a powerhouse of efficiency, it is designed for a specific use case. To determine if this is the right unit for your home, consider the following factors:
1. Square Footage and BTU Matching
The most common mistake homeowners make is "oversizing" their unit. Installing a 24,000 BTU unit in a 400-square-foot room leads to "short-cycling," where the unit reaches the target temperature so quickly that it shuts off before it can effectively dehumidify the air. This results in a room that feels cold and clammy. The 12,000 BTU rating of the RXB12AXVJU is the "Goldilocks" zone for (though budget-conscious buyers might look at the Senville LETO Series 12,000 BTU Mini-Split Air Conditioner and Heat Pump):
- Large Master Bedrooms: Especially those with vaulted ceilings or poor attic insulation (consider using Rockwool Safe 'n' Sound to improve thermal and acoustic efficiency).
- Home Offices: Where temperature stability is required for focus and electronic equipment.
- Sunrooms: Which often have higher heat loads due to glass walls and direct solar gain.
- Small Studio Apartments: Where a single zone can cover the entire living area without needing a complex multi-split.
2. The "Ductless" Advantage
If your home has an existing central HVAC system, you might wonder why you need a mini-split. The RXB12AXVJU is ideal for "problem rooms." Many homes have a bedroom at the end of a long duct run that never gets enough air, or a garage conversion that is freezing in winter. Instead of spending thousands to upgrade your entire central system or adding bulky ductwork, the RXB12AXVJU provides a surgical strike of comfort exactly where it is needed. For those considering an easier setup, our detailed MrCool DIY mini-split buying guide explores the DIY alternative. This "zoning" capability also saves money by allowing you to turn off the central AC and only cool the room you are currently occupying.
3. Installation Requirements
Unlike window units, this is not a "plug-and-play" device. It requires professional intervention for several reasons:
- A Dedicated Circuit: You will need a professional electrician to run a dedicated power line to the outdoor unit to prevent circuit trips.
- A Wall Penetration: A small 3-inch hole must be drilled through the exterior wall to accommodate the refrigerant lines and drainage pipe.
- Refrigerant Charging: A certified HVAC technician must vacuum the lines and charge the system with refrigerant to ensure there are no leaks.
Detailed Setup and Installation Process
While we strongly recommend professional installation, understanding the process helps homeowners ensure the job is done correctly. A proper installation of the Daikin RXB12AXVJU follows several critical stages:
Site Selection
The indoor unit must be mounted on a wall with enough clearance for airflow. Placing it directly above a bed or a desk is common, but it should not be obstructed by curtains or furniture. The outdoor unit should be placed on a level concrete pad or sturdy wall brackets, away from dense shrubbery to allow the condenser to "breathe." Improper placement of the outdoor unit can lead to "recirculation," where the unit sucks in its own hot air, killing efficiency.
Line-Set Routing
The technician will run a "line-set"—a pair of copper pipes wrapped in insulation—from the indoor unit to the outdoor unit. The quality of this routing is vital; bends that are too sharp can restrict refrigerant flow and create "kinks" that put undue stress on the inverter compressor. Ideally, the line-set should be as short as possible to maximize energy efficiency and minimize the pressure drop during heat exchange.
Condensate Management
One of the most overlooked aspects of installation is the drainage of condensation. The indoor unit removes moisture from the air, which then drips into a pan and exits via a plastic pipe. This pipe must be installed with a consistent downward slope (gravity drain) to prevent water from backing up and leaking inside your wall. If your installation site does not allow for a natural slope, a condensate pump must be installed to mechanically push the water out.
Electrical Connection and Commissioning
The final stage involves connecting the communication cable between the indoor and outdoor units. Because the RXB12AXVJU uses an inverter, the communication between the air handler and the compressor must be precise. Once powered on, the technician will perform a "commissioning" phase, checking the amperage draw and the temperature differential between the air entering the unit and the air leaving it to ensure the system is operating within factory specifications.
Long-Term Maintenance Guide
To maintain the 17 SEER efficiency and ensure the longevity of the RXB12AXVJU, a consistent maintenance schedule is required. Neglecting a mini-split can lead to reduced cooling capacity, increased energy bills, and the growth of biological contaminants within the system.
Monthly Filter Cleaning
The indoor air handler uses mesh filters to trap dust and allergens. Over time, these filters become clogged, restricting airflow and forcing the inverter to work harder (consuming more energy). Homeowners should slide the filters out every 2 to 4 weeks and rinse them with lukewarm water and a mild detergent. Ensure they are completely dry before re-inserting them to prevent mold growth.
The Self-Cleaning Function
The RXB12AXVJU features a specialized self-cleaning mode. When activated, the system manages the drying of the internal evaporator coil. This is critical because moisture left on the coil after a cooling cycle is the primary breeding ground for mildew. Using this feature regularly ensures that the air blowing into your room remains fresh and odor-free.
Annual Professional Tune-Ups
Once a year, it is recommended to have a certified technician perform a comprehensive check. This includes:
- Coil Cleaning: Using specialized chemicals to remove grime from the outdoor condenser fins.
- Refrigerant Check: Ensuring there are no micro-leaks in the line-set.
- Electrical Inspection: Checking for loose connections or frayed wiring caused by outdoor weathering.
- Drainage Test: Flushing the condensate line to ensure it isn't blocked by algae or debris.
Comparison: Mini-Split vs. Window Units vs. Central Air
When deciding on the Daikin RXB12AXVJU, it is helpful to compare it against the alternatives common for 500-square-foot spaces (such as the LG 12,000 BTU Window AC review), higher capacity options like the Bosch Ductless Mini-Split Heat Pump 18000 BTU Cold Climate Single Zone (see our Bosch BMS500-18HDN1 Buying Guide), or the
