The Whirlpool WRF535SWHZ is a 25 cu. ft. five-door French door refrigerator (two top doors, a middle drawer, and a two-tier freezer drawer) designed for families who need flexible storage and quick access to frequently used items. With its dedicated middle drawer, fingerprint-resistant stainless finish, and adaptive cooling features, it sits in the sweet spot between standard French door models and pricier counter-depth designs. This guide walks through everything you need to know before buying, installing, and living with this fridge.

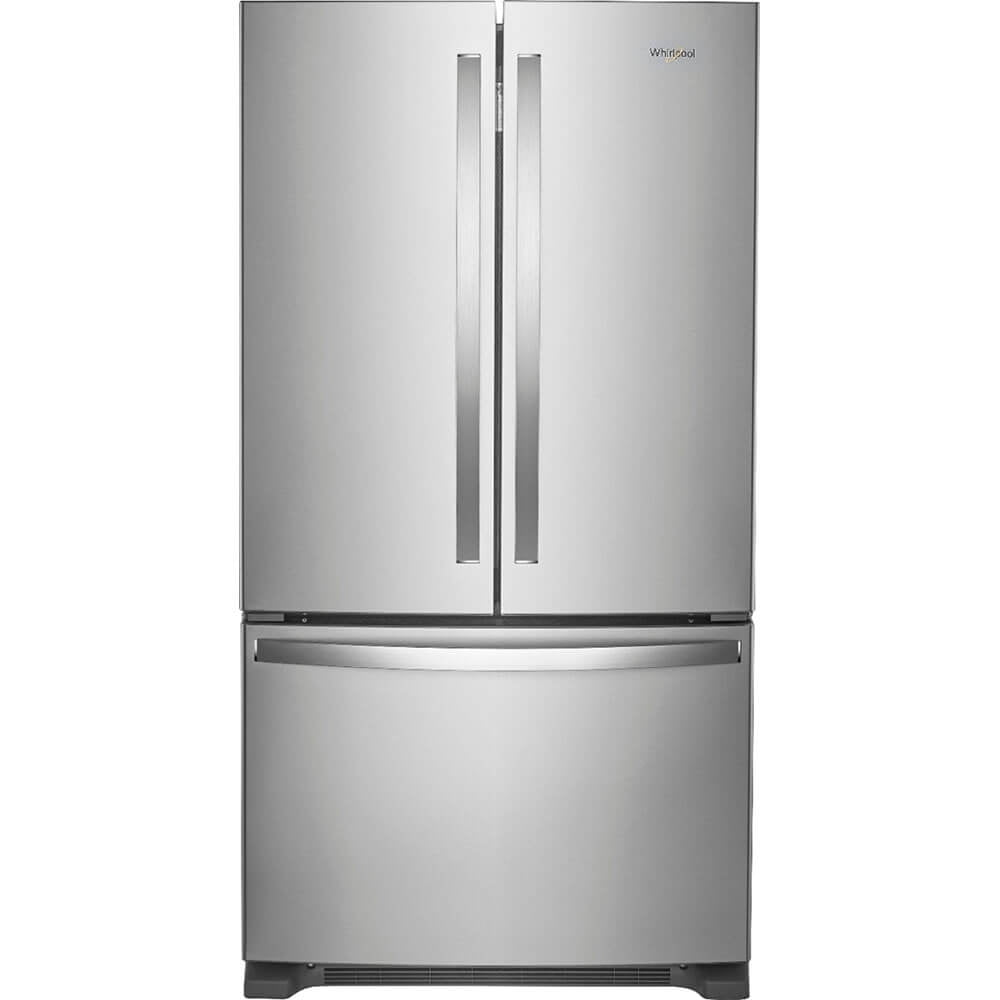

See current price and details for Whirlpool 25 cu. ft. 5-Door French Door Refrigerator (WRF535SWHZ).
TL;DR: The Whirlpool WRF535SWHZ offers 25 cu. ft. of flexible storage with a third middle drawer that's perfect for snacks, deli items, or party trays. It's a full-depth model (not counter-depth), uses an internal water dispenser to maximize door storage, and is best suited for households of 4–6 looking for solid value in the $1,800–$2,400 range (pricing as of publication; check current listings for updates).
Overview of the WRF535SWHZ
This is a five-door configuration: two French doors on top for the refrigerator compartment, a middle pull-out drawer (Whirlpool calls it a "Pantry-Inspired Drawer"), and a two-tier freezer drawer at the bottom. The 25 cu. ft. total capacity breaks down to roughly 17.7 cu. ft. of fresh food space and 7.3 cu. ft. of freezer space, which is generous for a 36-inch wide unit. If you need even more room, larger alternatives like the Samsung 28 cu. ft. 4-Door French Door with FlexZone or the Café 27.8 cu. ft. Smart 4-Door push capacity higher at a price premium.
25 cu. ft. (17.7 fresh / 7.3 freezer)
35.63" W × 70.13" H × 35.25" D
Fingerprint-Resistant Stainless
Internal (in-fridge)
Factory-installed, in freezer
ENERGY STAR certified
Key Features Explained
The Middle Drawer
The standout feature is the third middle drawer, which sits between the French doors and the freezer. It's full-width and at counter height, making it ideal for storing tall deli platters, sheet cakes, beverages for kids to grab themselves, or pizza boxes. It has its own LED light and three height-adjustable shelves. Note that it shares cooling with the main fresh food compartment, so it's not a separately controlled climate zone.
Adaptive Defrost
Rather than running on a timer, the defrost cycle activates only when needed based on usage patterns. This reduces energy consumption and cuts down on temperature fluctuations.
Accu-Chill Temperature Management
Sensors monitor when warm food is added and automatically adjust cooling to bring items down to safe temperatures faster. It's not a true rapid-cool button, but it works in the background.
Fingerprint-Resistant Finish
The stainless coating genuinely does resist smudges better than standard stainless, though it's not magnetic — so kids' artwork and shopping lists will need to live elsewhere.
Storage Layout
Inside the main refrigerator compartment, you get:
- Three adjustable spill-resistant glass shelves
- Two humidity-controlled crispers
- A full-width deli/cheese drawer
- Gallon-size door bins (the internal water dispenser frees up the door, which is a real plus)
The freezer drawer has two tiers: a deep lower bin and a sliding upper basket. The factory ice maker lives in the upper section and produces standard crescent cubes.
Pros and Cons
Pros
- Flexible middle drawer is genuinely useful
- Internal water dispenser preserves door storage
- Generous 25 cu. ft. capacity in a standard 36" footprint
- Fingerprint-resistant finish holds up well
- ENERGY STAR certified
- Quiet operation (around 42 dB)
Cons
- Full-depth design protrudes past most counters
- No external water/ice dispenser
- Middle drawer isn't a separate temperature zone
- No Wi-Fi or smart connectivity
- LED lighting is fridge-only; freezer is dimmer
Installation Considerations
Measure twice. The WRF535SWHZ is 70.13" tall and needs about 36" of width with at least 1/8" clearance on each side. Door swing requires roughly 49" of total depth when fully opened, so check your kitchen layout carefully.
Water Line
You'll need a 1/4" copper or approved plastic water line within reach of the back of the unit for the ice maker and internal water dispenser. Whirlpool recommends installing a dedicated shutoff valve.
Ventilation
Leave at least 1/2" clearance at the top and 1" at the back. Insufficient airflow is one of the most common causes of premature compressor wear.
Leveling
The doors won't seal properly if the unit isn't level and tilted very slightly backward (about 1/4" higher in front). This also helps the doors self-close.
Daily Use Tips
- Set temperatures to 37°F (fridge) and 0°F (freezer). These are the factory defaults and meet FDA food safety guidelines.
- Don't overfill. The Accu-Chill system relies on airflow; blocking vents at the back of the fresh food compartment causes uneven cooling.
- Use the humidity-controlled crispers correctly. High humidity for leafy greens, low humidity for fruits that emit ethylene (apples, pears).
- Keep the middle drawer for items you grab often. Beverages, snacks, lunch supplies, and condiments work great here.
Pairing this fridge with other quiet, energy-efficient kitchen appliances? Our Whirlpool WDT730PAHZ dishwasher review and Bosch 500 Series dishwasher buying guide are good companion reads.
Maintenance Schedule
| Task | Frequency |
|---|---|
| Replace water filter (EDR1RXD1 / Filter 1) | Every 6 months |
| Replace air filter (FreshFlow) | Every 6 months |
| Clean condenser coils | Every 6–12 months |
| Wipe door gaskets | Monthly |
| Empty and clean ice bin | Every 2–3 months |
| Vacuum behind/underneath unit | Twice a year |
Tip: If your ice tastes off or water flow slows, the filter is the first thing to check. The indicator light is conservative — many households need to change it sooner if water usage is high.
Common Issues and Fixes
Ice maker not producing ice
Confirm the freezer is at 0°F or below — ice production drops sharply above 5°F. Check that the wire shutoff arm inside the ice bin is in the down position, and verify the water line valve is fully open.
Water dispenser slow or sputtering
Almost always a clogged or expired filter. Replace the EDR1RXD1 filter and run 2–3 gallons through the dispenser to flush trapped air.
Frost buildup in freezer
Usually means the door isn't sealing. Check the gasket for debris, confirm the unit is level, and make sure nothing inside is preventing the drawer from closing flush.
Loud humming or buzzing
Some compressor noise is normal, especially right after defrost cycles. Persistent rattling often traces back to the drip pan at the bottom of the unit (slide the fridge out, locate the pan just above the floor behind the kick plate, and reseat or empty it) or insufficient clearance at the back.
Who Should Buy This Refrigerator?
The WRF535SWHZ is a strong fit for families of four to six, households that entertain often, or anyone who's been frustrated by losing door storage to an external water dispenser. It's also a good pick if you want French door styling without paying the premium for counter-depth or smart-connected models.
Skip it if you have a shallow kitchen layout where a counter-depth fridge would look much cleaner, if you really want an external ice dispenser, or if app integration is a must-have. If counter-depth styling matters more to you, take a look at the Bosch 800 Series 36-inch counter-depth French door refrigerator or the more compact KitchenAid KRFC300ESS counter-depth model. For smart-connected alternatives with app control, the GE Profile PFE28KYNFS with hands-free AutoFill is worth a look.
Frequently Asked Questions
Is the WRF535SWHZ counter-depth?
No. It's a standard full-depth refrigerator at 35.25" deep, and it will protrude several inches past typical 24–25" countertops.
Which water filter does it use?
It uses the Whirlpool EDR1RXD1 (also sold as Filter 1 or W10295370A). Generic compatible filters exist but may affect taste and flow rate. You can find the correct OEM filter listed on the WRF535SWHZ product page.
Is the middle drawer a separate climate zone?
No. It cools at the same temperature as the main refrigerator compartment. It's a storage convenience feature, not a deli or meat keeper with independent controls.
Can the doors be reversed?
The French doors on top are not reversible (they swing outward from the center). The middle drawer and freezer drawer pull straight out, so reversibility isn't a factor.
Does it have Wi-Fi or smart features?
No. The WRF535SWHZ is a non-connected model. If you want app control, look at smart-connected French door alternatives like the LG LRFLC2706S with InstaView or the Café CQE28DM5NS5 Smart 4-Door.
How loud is it?
Operation runs around 42 dB, which is quiet enough that you'll mostly only hear it during ice production or right after the door has been opened.
What's the warranty?
Whirlpool provides a one-year limited warranty on parts and labor, with extended coverage on the sealed refrigeration system in some regions. Always confirm specifics with your retailer at purchase.
Final Thoughts
The Whirlpool WRF535SWHZ doesn't try to be the flashiest French door refrigerator on the market, and that's part of its appeal. It nails the fundamentals — capacity, layout flexibility, quiet operation, and a useful middle drawer — without the price premium of smart features or counter-depth styling. For most families, it represents a sensible balance of features, reliability, and value.
Our verdict: A reliable, well-priced French door refrigerator that gets the basics right. Recommended for families who value flexible storage over smart features.
