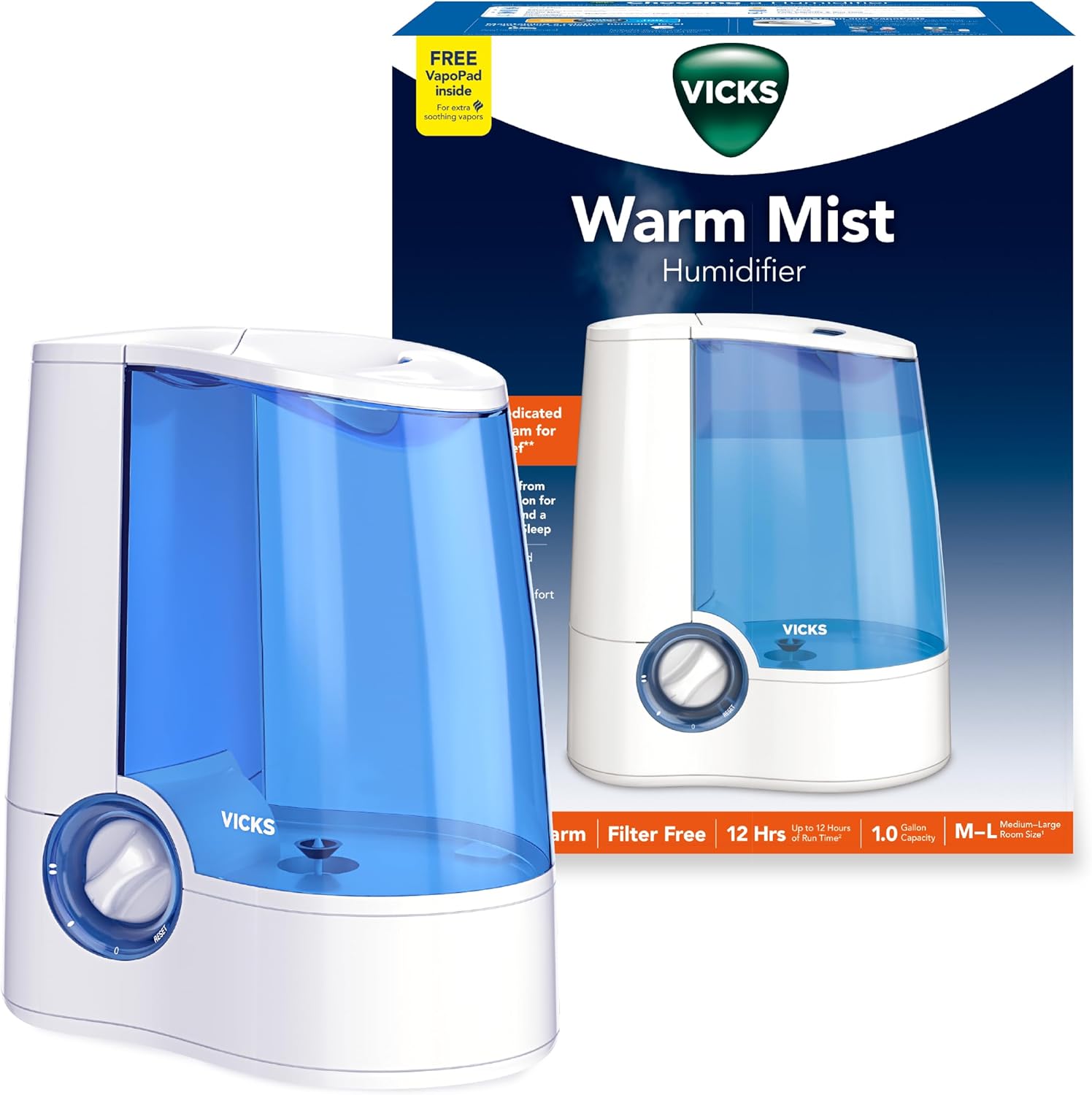

Vicks V745A Warm Mist Humidifier: Complete Guide

The Vicks Warm Mist Humidifier with Medicine Cup for Medium Rooms is built for cold and flu relief.

— a bedroom-focused unit designed to ease congestion, dry coughs, and winter dryness. By boiling water before releasing it as a warm, soothing mist, it significantly reduces bacteria and mold in the output while pairing seamlessly with Vicks VapoSteam medicated inhalant for added comfort.

What Is the Vicks V745A?

While this unit adds moisture, homeowners in damp climates may also need to consult our GE ADEL50LZ dehumidifier guide to maintain a healthy balance and prevent mold.

The V745A is a warm mist (steam) humidifier, meaning it heats water to a boil and releases the resulting steam as a fine, warm mist. If you are managing overall home humidity, you might also find our guide to dehumidifiers for damp rooms helpful, or our GE ADEL50LZ review helpful for removing excess moisture (read our GE ADEL50LZ review for a deep dive into performance).

Unlike cool mist or ultrasonic models, warm mist units don't require filters or wicks, and the boiling process kills most waterborne bacteria and mold before mist enters the air (for tips on maintaining total home air quality, see our detailed review of the Filtrete MERV-12 air filter). It's specifically engineered to work with Vicks VapoSteam liquid, which adds menthol vapors to help relieve cough symptoms.

This model targets the medium-room category — bedrooms, home offices, and nurseries (with safety precautions) up to approximately 250 square feet. Its 1-gallon (3.78 liter) tank strikes a balance between runtime and portability: light enough to carry one-handed when full, but large enough to run overnight on the low setting without refilling.

The V745A sits in Vicks' warm mist lineup as a streamlined, medicine-cup-equipped variant. It lacks the digital controls, humidity sensors, or programmable timers found on premium models like the Levoit Classic 300S Smart Ultrasonic Humidifier, but that simplicity is intentional — fewer components mean fewer failure points and a lower purchase price. For buyers who want reliable steam output and VapoSteam integration without paying for smart features they'll never use, the V745A hits a practical sweet spot.

How It Works: Technical Deep Dive

Electrode-Based Heating System

The V745A operates on a simple but clever electrode-based heating system. Water in the reservoir flows by gravity into a heating chamber at the base of the unit where two metal electrodes are positioned. When the unit is plugged in and switched on, alternating current passes between these electrodes through the water itself.

Here's the key insight: pure water is actually a poor conductor of electricity. The V745A relies on the dissolved minerals in tap water — primarily calcium, magnesium, and bicarbonate ions — to complete the electrical circuit. As current flows through this mineral-rich water, resistive heating occurs directly within the water volume, bringing it to a boil. This is why the unit requires tap water and will not function properly with distilled, demineralized, or heavily softened water — there simply aren't enough charge carriers to sustain the current.

The steam rises through a central chimney and exits through the mist outlet at the top of the housing. By the time it reaches the outlet, the steam has cooled from 212°F (100°C) to a warm but comfortable temperature, typically around 110–120°F (43–49°C) depending on ambient conditions and output setting.

The Medicine Cup Mechanism

A small plastic cup sits in a recessed well near the steam outlet, positioned so that rising steam passes directly over its contents. When you add Vicks VapoSteam liquid (which contains camphor, menthol, and eucalyptus oil), the warm steam volatilizes these compounds and carries them into the room air. The cup holds approximately 1–2 teaspoons (5–10 mL) and is designed for single-session use — you add fresh VapoSteam each time you want medicated vapor.

Important design detail: the medicine cup is not a reservoir. It does not feed liquid into the heating chamber. This separation is critical — adding VapoSteam or any oil directly to the water tank would coat the electrodes, impair conduction, create residue buildup, and potentially damage the unit.

Two Output Settings Explained

The High/Low switch doesn't change the water temperature — water boils at the same temperature regardless. Instead, it modulates the power delivered to the electrodes:

On the low setting, the unit may cycle the heating element on and off to maintain a gentle boil rather than a vigorous one, which also reduces the audible "simmering" sound that some users notice on high.

Auto Shut-Off Safety Circuit

The V745A includes a thermal/float-based auto shut-off mechanism. As water boils away, the level in the heating chamber drops. Once the electrodes are no longer submerged, the circuit opens and power cuts automatically. This prevents dry-running, which could overheat the base, damage the electrodes, or create a fire hazard. The unit will not restart until the tank is refilled and reseated, allowing water to flow back into the heating chamber.

Setting It Up: Complete First-Time Walkthrough

Unboxing and Initial Inspection

1. Remove all packaging materials. The box typically contains: main base unit, water tank with cap, medicine cup (may be pre-installed in its well), and instruction manual.
2. Inspect the heating chamber in the base — you should see two metal electrodes (small pins or plates) at the bottom. They should be clean and free of manufacturing residue.
3. Check the tank cap gasket — it should be seated properly in the cap groove to prevent leaks.
4. Verify the medicine cup sits securely in its recessed well near the mist outlet.

First Fill and Startup

1. Rinse the tank: Fill the water tank with cool tap water, swirl gently, and empty. Do not use soap or detergent — residues can affect steam quality and electrode function.
2. Fill with fresh tap water: Fill the tank completely with cool tap water. Never use warm or hot water — it can deform the tank and reduces the mineral content needed for conduction. Never fill through the steam outlet on the base.
3. Secure the cap: Screw the cap on firmly but don't overtighten. The gasket creates the seal.
4. Place tank on base: Align the tank opening with the base inlet and lower straight down. You'll hear water gurgling as it flows into the heating chamber — this is normal.
5. Position the unit: Place on a flat, level, water-resistant surface (nightstand, dresser, desk). Keep at least 4 feet (1.2 m) from beds, walls, furniture, and out of reach of children and pets. The mist outlet should have clear airspace above it.
6. Plug in: Connect to a grounded 120V outlet. Avoid extension cords if possible; if required, use a heavy-duty 14-gauge or thicker cord rated for at least 500W.
7. Select setting and wait: Turn the dial to High for fastest startup. Wait 5–10 minutes for water to reach boiling and visible steam to appear. The unit is nearly silent — you may hear a faint bubbling or simmering sound.
8. Add VapoSteam (optional): Once steam is flowing steadily, pour 1 teaspoon (5 mL) of Vicks VapoSteam into the medicine cup on Low, or up to 2 teaspoons (10 mL) on High. Never exceed this amount.
9. Adjust to preferred setting: After the room reaches comfortable humidity, you can switch to Low for quieter, longer operation.

Optimal Placement Guidelines

• Elevation: Place on a raised surface (nightstand, shelf) at least 2–3 feet off the floor. This allows warm mist to disperse naturally via convection rather than pooling at floor level.
• Distance from sleep area: Minimum 4 feet (1.2 m) from your face/pillow. Warm mist feels soothing but can cause discomfort if directed straight at skin for prolonged periods.
• Wall clearance: Keep 12+ inches (30 cm) from walls and curtains to prevent moisture buildup on surfaces.
• Electronics: Keep away from electronics, outlets, and power strips — steam carries moisture that can condense on cooler surfaces.
• Flooring: Avoid placing directly on unsealed wood, carpet, or rugs. Use a waterproof mat or tray if surface protection is a concern.
• Airflow: Don't place in an enclosed space (cabinet, closet) or directly under a shelf that blocks upward mist dispersion.

Cleaning and Maintenance: Complete Protocol

Regular cleaning is not optional with the V745A — it's essential for performance, longevity, and hygiene. Mineral deposits (scale) will accumulate on the heating electrodes every time you run the unit. Left unchecked, scale insulates the electrodes from the water, reducing steam output, increasing energy consumption, and eventually causing the unit to stop producing mist entirely.

Routine Cleaning (Every 1–3 Days of Use)

1. Unplug the unit and let it cool for at least 15 minutes. The base and remaining water will be very hot.
2. Remove the tank and empty any remaining water from both tank and base. Pour out through the tank opening and base drain area — don't shake violently.
3. Rinse the tank thoroughly with cool tap water. Swirl and dump several times.
4. Wipe the base interior with a clean, damp cloth or soft sponge. Focus on the heating chamber walls and the area around the electrodes. Do not submerge the base in water.
5. Rinse the medicine cup with warm water and mild soap if VapoSteam was used. Dry before replacing.
6. Refill tank with fresh tap water, reseat on base, and resume operation.

Weekly Deep Descaling (Critical for Performance)

Frequency: Weekly during daily use; every 2 weeks during intermittent use. Hard water areas may need descaling every 3–4 days.

1. Unplug and cool completely (30+ minutes recommended).
2. Empty all water from tank and base.
3. Pour roughly 1 inch (2.5 cm) of undiluted white distilled vinegar (5% acetic acid) into the base, ensuring the heating electrodes are fully submerged.
4. Let soak for 20–30 minutes. For heavy scale, soak up to 1 hour.
5. Use a soft brush (old toothbrush, bottle brush) to gently loosen deposits on and around the electrodes. Never use metal tools, wire brushes, or abrasive pads — the electrode coating is delicate and damage is irreversible.
6. Empty the vinegar solution. Rinse the base thoroughly with clean water — multiple rinses until vinegar smell is gone.
7. While the base drains, clean the tank: fill halfway with water, add 1 tablespoon vinegar, shake well, let sit 10 minutes, then rinse thoroughly.
8. Wipe the medicine cup clean.
9. Refill with fresh tap water and test operation. Steam output should be visibly stronger if scale was the issue.

Electrode Longevity and Replacement Reality

The heating electrodes are not user-replaceable on the V745A. They're integrated into the base assembly. With proper descaling, the electrodes typically last 2–4 years of daily seasonal use before mineral pitting and coating degradation reduce output noticeably. Signs of electrode end-of-life:

• Steam output remains weak after thorough descaling
• Unit takes significantly longer to start producing steam
• Frequent auto-shutoff despite adequate water level
• Visible pitting, corrosion, or white crust that won't remove with vinegar

At that point, the entire unit needs replacement. This is the trade-off of the electrode design — no filters to buy, but a finite electrode lifespan. Most users find the 3-year warranty period aligns well with typical electrode life.

Seasonal Storage Protocol

1. Perform a full deep descale (as above).
2. Run the unit on High until tank is empty and auto-shutoff triggers — this dries the heating chamber.
3. Unplug and let cool completely.
4. Wipe all surfaces dry. Leave tank cap off and base exposed to air for 24+ hours to ensure zero residual moisture.
5. Store in original box or a clean plastic bag in a temperature-controlled space. Avoid garages, attics, or damp basements.
6. Before next season: rinse tank, fill, and test run for 30 minutes before regular use.

Using Vicks VapoSteam: Complete Guide

The V745A includes a small medicine cup designed specifically for Vicks VapoSteam liquid, which contains camphor (4.8%), menthol (2.6%), and eucalyptus oil (1.2%) in a petrol
