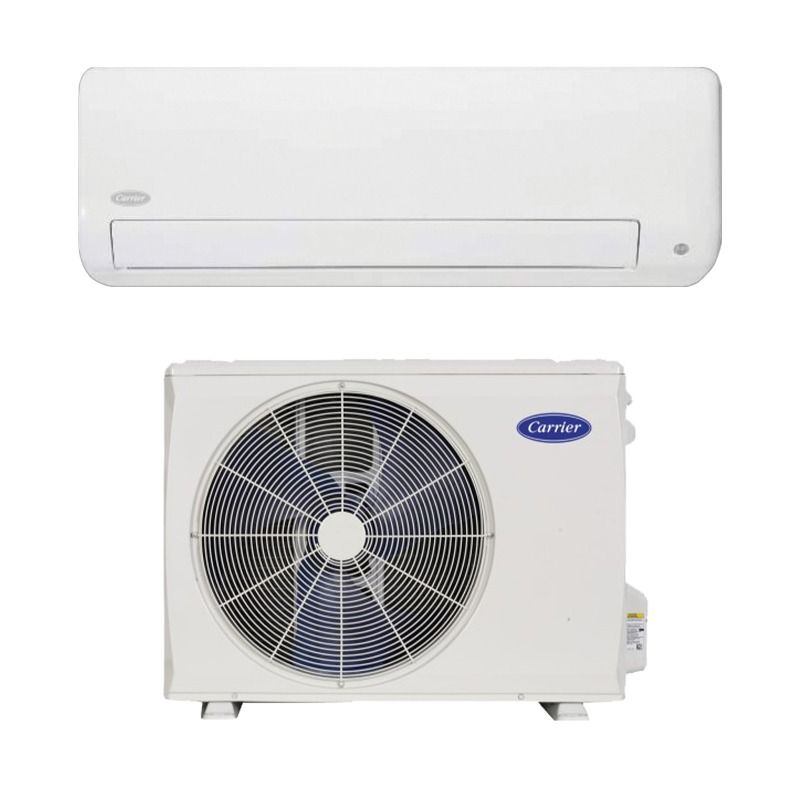

Carrier Performance Series Ductless Mini-Split Heat Pump 9000 BTU Single Zone (38MAQB09R-3) — 8.5/10
A quiet, efficient single-zone mini-split backed by one of the most trusted names in HVAC, the Carrier 38MAQB09R-3 is an excellent pick for smaller rooms and supplemental zones — provided you're willing to pay a modest brand premium over budget alternatives.
We may earn a commission if you purchase through links on this page, at no extra cost to you.
Overview
Read our detailed Carrier 38MAQB09R-3 buying guide for a deeper dive into installation and specs.
If you're looking for a reliable, energy-efficient heating and cooling solution for a small room, the Carrier Performance Series Ductless Mini-Split Heat Pump 9000 BTU Single Zone is a high-efficiency, compact single-zone ductless heat pump designed to heat and cool one room or zone without the cost and complexity of ductwork. With a 9,000 BTU capacity, it's sized for spaces roughly in the 250–400 square foot range — think home offices, bedrooms, sunrooms, garage conversions, or finished bonus rooms.
What sets this unit apart from the sea of budget mini-splits is the Carrier badge and the engineering behind it. The system delivers up to 19 SEER cooling efficiency and incorporates Greenspeed intelligence, Carrier's adaptive inverter technology that continuously modulates compressor output to match the actual load rather than cycling on and off. The result is steadier temperatures, lower energy use, and noticeably quieter operation.
This unit is best suited for homeowners who prioritize long-term reliability, dealer support, and parts availability over the lowest possible upfront price. For those considering other premium high-efficiency options, our Bosch BMS500-18HDN1 buying guide for the Bosch Ductless Mini-Split Heat Pump 18000 BTU Cold Climate Single Zone and Daikin 17 SEER mini-split buying guide and Daikin 17 SEER Single-Zone Ductless Mini-Split offer great comparisons for different space requirements. It also appeals to anyone already in the Carrier ecosystem, since it integrates with Carrier's Côr thermostat platform for smart home control. For those who need more expansive coverage or a multi-zone setup, this unit serves as an ideal modular building block for a larger home HVAC strategy.
Key features
High-efficiency inverter operation keeps cooling costs down compared with conventional single-stage equipment and most window units.
Adaptive compressor modulation matches output to demand for consistent comfort and fewer temperature swings.
Maintains heating operation down to 5°F outdoor temperatures, making it a viable supplemental heat source in cold climates.
The wall-mounted indoor unit runs quietly enough for bedrooms and home offices, even at higher fan speeds.
Integrates with Carrier's Côr smart thermostat ecosystem for scheduling and remote control.
Carrier's nationwide dealer network means easier servicing and parts availability over the system's lifespan.
| Feature | Value |
|---|---|
| Model | 38MAQB09R-3 |
| Series | Carrier Performance Series |
| Type | Ductless mini-split heat pump |
| Capacity | 9,000 BTU |
| Zones | Single zone |
| Cooling efficiency | Up to 19 SEER |
| Compressor technology | Inverter-driven with Greenspeed intelligence |
| Low-ambient heating | Operates down to 5°F outdoor temperature |
| Smart home integration | Carrier Côr thermostat ecosystem |
| Indoor unit | Quiet wall-mounted blower |
| Best for | Smaller rooms and supplemental heating/cooling zones |
Pros & cons
Pros
- Up to 19 SEER efficiency keeps operating costs low
- Greenspeed intelligence delivers smooth, adaptive comfort
- Reliable heating down to 5°F outdoor temperatures
- Quiet indoor unit suitable for bedrooms and offices
- Strong dealer network and long-term parts support
- Côr thermostat integration for smart control
Cons
- Higher upfront cost than budget mini-split brands
- Professional installation typically required to preserve warranty
- Single-zone only — multi-room homes will need additional units
- Smart features are tied to Carrier's own ecosystem
Performance
In day-to-day use, the Carrier Performance Series behaves exactly as a modern inverter mini-split should. Rather than blasting cold or hot air and shutting off, Greenspeed intelligence ramps the compressor up and down gradually, holding the setpoint within a tight band. In a typical bedroom or office, that translates to comfort you stop noticing — which is the point.
Cooling performance is strong for the 9,000 BTU class, and the up-to-19 SEER rating means it sips electricity compared with a window air conditioner of similar capacity. Heating is where this unit earns its keep in colder regions: rated operation down to 5°F makes it a genuinely useful supplemental heat source through most of the winter in much of the country, not just a shoulder-season convenience.
Noise is another strong suit. The indoor blower is quiet enough that most users will only hear a soft airflow sound at medium and high fan speeds, and the outdoor unit's variable-speed compressor avoids the abrupt start-up clatter common with single-stage equipment.
How It Works: The Technology Behind the 38MAQB09R-3
To understand why the Carrier Performance Series outperforms generic units, one must look at the thermodynamics of the inverter system. Traditional HVAC systems are "binary"—they are either 100% on or 100% off. This leads to the "swing" effect where a room gets too cold, the heater kicks in, the room gets too hot, and then it shuts off again.
The 38MAQB09R-3 utilizes Greenspeed Intelligence. This is a variable-speed inverter compressor that acts more like a dimmer switch than a light switch. If the room is 74°F and your target is 72°F, the compressor doesn't blast at full power. Instead, it operates at a low, efficient frequency to gently nudge the temperature down and then stays at that low frequency to maintain it. This minimizes wear and tear on the hardware and drastically reduces electricity spikes.
From a mechanical standpoint, the unit uses a heat pump cycle. In cooling mode, it extracts heat from your indoor air and pumps it outside. In heating mode, the cycle reverses, extracting heat from the outdoor air—even when it's as cold as 5°F—and pumping it into your room. The efficiency of this process is measured by the SEER (Seasonal Energy Efficiency Ratio), and at 19 SEER, this unit is significantly more efficient than the baseline requirements for most residential installations.
Furthermore, the internal heat exchanger is designed with advanced fin geometry to maximize the surface area contact between the refrigerant and the air. This increases the rate of heat transfer, allowing the unit to reach the desired temperature faster while using less energy. The integration of high-quality sensors allows the Greenspeed intelligence to adjust the fan speed in real-time, ensuring that air is distributed evenly across the room to prevent "hot spots" or "cold pockets."
Comprehensive Installation and Setup Guide
Installing the Carrier Performance Series 38MAQB09R-3 is a complex process that requires precision to ensure the system operates at its rated 19 SEER efficiency. While some "DIY" kits exist in the market (see our MrCool DIY-24-HP-WIF115 buying guide for a different approach), Carrier's warranty typically requires professional installation by a licensed HVAC technician.
The Physical Installation Process
The process begins with the placement of the indoor wall-mounted unit. It must be installed with sufficient clearance from the ceiling and adjacent walls to allow for proper airflow. The technician will cut a hole through the exterior wall for the refrigerant lines, communication cables, and condensate drain pipe. Proper sealing of this hole is critical to prevent air leaks and pest intrusion.
The outdoor condenser unit is then placed on a level concrete pad or sturdy wall brackets. This unit must have ample "breathing room"—usually at least 12-24 inches of clearance from the wall—to prevent the air from recycling, which would kill efficiency and potentially overheat the compressor. Proper leveling of the outdoor unit is essential; if the unit tilts, the compressor lubricant may not circulate correctly, leading to premature mechanical failure.
Vacuuming and Charging
One of the most critical steps in the installation of the 38MAQB09R-3 is the vacuum process. Technicians use a vacuum pump to remove all air and moisture from the refrigerant lines. Moisture in the lines can lead to "acid" formation within the cooling cycle, which eats away at the compressor from the inside out. Once a deep vacuum is achieved (typically measured in microns), the system is released and charged with a precise amount of R-410A refrigerant. Undercharging or overcharging by even a small percentage can lead to a significant drop in SEER rating and increased noise.
Integrating the Côr Ecosystem
Once the hardware is live, the smart integration begins. The 38MAQB09R-3 is designed to play nicely with Carrier's Côr thermostat. Setup involves connecting the unit to your home's 2.4GHz or 5GHz WiFi network and syncing it with the Côr app. This allows users to set schedules, monitor energy usage, and adjust temperatures from their smartphone or voice assistants. The Côr system can also provide diagnostic alerts if the unit detects a filter clog or a mechanical anomaly, potentially saving thousands in repair costs by catching issues early.
Maintenance and Long-Term Care
To keep your Carrier mini-split running for 15+ years, a consistent maintenance schedule is non-negotiable. Because mini-splits handle a huge volume of air, they act as filters for your room, collecting dust and allergens on the evaporator coils.
Monthly User Maintenance
The most important task is cleaning the indoor air filters. In the 38MAQB09R-3, these are typically slide-out mesh filters. Every 2 to 4 weeks, you should remove them and vacuum them or rinse them with lukewarm water. Clogged filters force the blower motor to work harder, increasing noise and reducing efficiency. Failure to clean filters leads to "icing" on the evaporator coils, which can cause water to leak from the unit and damage your interior walls.
Quarterly and Annual Service
Every few months, check the outdoor unit. Ensure that leaves, grass clippings, or snow haven't blocked the condenser fins. Use a garden hose (not a pressure washer, which can bend the delicate aluminum fins) to gently rinse debris from the coils. Debris on the outdoor coils acts as an insulator, forcing the compressor to run hotter and longer to move heat, which degrades the lifespan of the inverter.
Once a year, a professional HVAC technician should perform a "system health check." This includes:
- Refrigerant Level Check: Ensuring there are no slow leaks in the line sets.
- Electrical Inspection: Checking for frayed wires or loose connections at the disconnect box.
- Drain Line Clearing: Using a vacuum or nitrogen blast to clear the condensate line, preventing water from leaking inside your walls.
- Coil Deep Clean: Using specialized alkaline cleaners to remove deep-seated grime from the outdoor unit.
Buyer's Guide: When to Choose the 38MAQB09R-3
Choosing the right heat pump depends on a balance of room size, climate, and budget. The 38MAQB09R-3 is a specialized tool, not a one-size-fits-all solution.
Room Size and BTU Calculation
The "9,000 BTU" rating is the heart of this machine's capability. As a general rule of thumb, you need about 20-30 BTU per square foot. This puts the 38MAQB09R-3 perfectly in the 250-400 sq ft range. However, you must adjust for specific variables:
- Ceiling Height: If you have vaulted ceilings over 10 feet, you have more air volume to heat/cool. You may need to drop to the lower end of the range (250 sq ft).
- Sun Exposure: A south-facing sunroom with floor-to-ceiling glass will have a much higher "heat load" than a shaded bedroom.
- Insulation Quality: In an old house with single-pane windows, 9,000 BTU might struggle in a 300 sq ft room during a heatwave.
Comparison: Carrier vs. Budget Alternatives
When comparing the 38MAQB09R-3 to budget brands (see our Pioneer mini-split buying guide) like Senville LETO Series 12,000 BTU Mini-Split or Pioneer Diamante Series 18,000 BTU Mini-Split, the differences aren't immediately visible—they are in the "invisible" engineering. Budget units often use "on-off" compressors or very basic inverters that don't modulate as smoothly as Carrier's Greenspeed. More importantly, budget units often lack a local service network. If a budget unit's control board fails three years from now, you may have to ship the unit back to a warehouse or hope a local tech can find a generic part. With Carrier, any licensed HVAC tech in North America can likely source parts for the Performance Series.
Furthermore, the build quality of the chassis and the quality of the refrigerant piping in the 38MAQB09R-3 are generally superior. Budget units often use thinner copper or lower-grade plastics that are more prone to vibration noise (rattling) over time. While the upfront cost is higher, the "total cost of ownership" over ten years is often lower for the Carrier unit due to higher efficiency and better longevity.
Climate Considerations
The 5°F heating limit is impressive but not "Arctic." If you live in Maine or Minnesota, where temperatures regularly hit -10°F, this unit should be viewed as a supplemental heat source. It will take the edge off the cold, but you will still need your primary furnace. However, for users in the Mid-Atlantic, Southeast, or Southwest, this unit can easily serve as the primary source of heating for a specific zone.
In humid climates, the 38MAQB09R-3 excels because the inverter technology allows it to run for longer cycles at lower speeds. This is the secret to effective dehumidification. A budget unit that cycles on and off rapidly often leaves the room feeling "cold and clammy" because it reaches the temperature target before it has had time to remove the moisture from the air. The Carrier unit's ability to "sip" along at a low power level ensures a dryer, more comfortable environment.
Potential Pitfalls and Common Mistakes
Despite its high quality, there are several common mistakes homeowners make when purchasing and operating the 38MAQB09R-3 that can compromise its performance.
The "DIY" Trap
Many homeowners are tempted by the idea of a DIY installation to save $1,000–$2,000 in labor. However, mini-splits are not like window ACs. They require a vacuum pump and a manifold gauge set to ensure the lines are devoid of air. If you install this unit without a professional vacuum, you will likely introduce moisture into the system. This doesn't always cause a failure on day one, but it causes the compressor to degrade prematurely, often leading to a total system failure in year 3 or 4—exactly when the warranty might be contested due to improper installation.
Incorrect Placement
Placing the indoor unit directly above a bed or a desk can create an "uncomfortable draft" effect. Because the air is thrown from the top of the unit, placing it where it blows directly onto people can lead to localized chilling. The best placement is typically on a wall that allows the air to circulate across the longest dimension of the room, avoiding direct blasts on seating or sleeping areas.
Over-Reliance on "Turbo" Mode
Most mini-splits have a "Turbo" or "High" mode. While useful for quickly cooling a room after you've arrived home, running the unit in Turbo mode indefinitely defeats the purpose of the Greenspeed intelligence. It forces the compressor to
