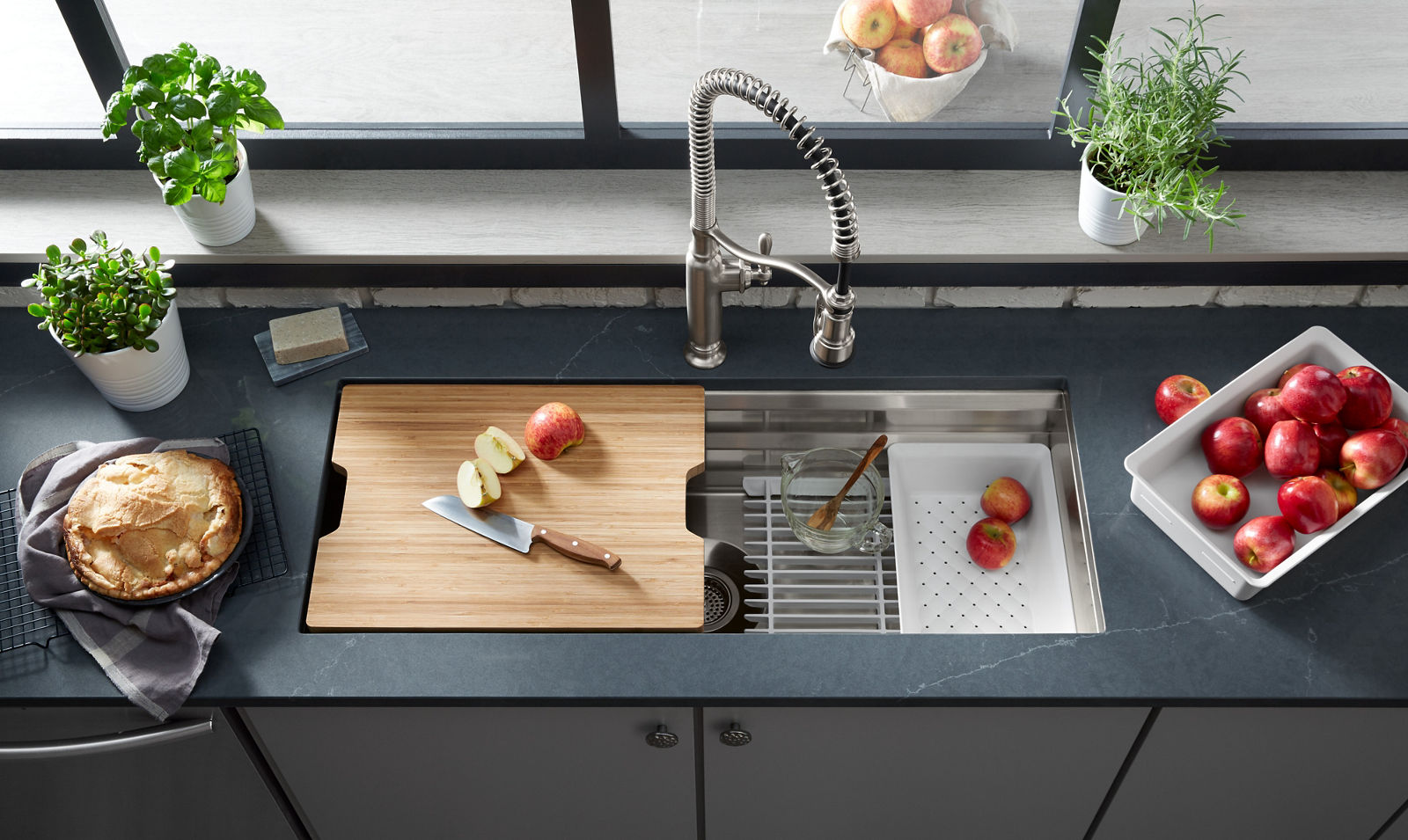

If you're renovating your kitchen or simply replacing a worn-out basin, choosing the right undermount sink can make or break both the look and long-term function of your workspace. The Kohler Vault 35-1/2" x 21-1/4" Undermount Single Bowl Kitchen Sink (K-3942-1-NA) has earned a devoted following among contractors and homeowners alike — and after spending serious time with the specs, the installation requirements, and real-world feedback, it's easy to see why. Read on for everything you need to know before you buy — including whether its premium $500–$700+ price tag is justified for your kitchen.
TL;DR — Quick Summary
- The Kohler Vault K-3942-1-NA is a large-capacity, single-bowl undermount kitchen sink in 18-gauge stainless steel.
- Its unique rectangular bowl with tall walls maximizes usable depth while keeping a low-profile, seamless counter appearance.
- Best suited for solid-surface, granite, quartz, or thick wood countertops — not for laminate.
- Comes with a single pre-drilled faucet hole; additional holes can be added during fabrication.
- Expect a premium price point, but the build quality and Kohler's lifetime warranty back up every penny.
Our Top Pick: Kohler Vault K-3942-1-NA
The Kohler Vault 35-1/2" Single Bowl Undermount earns a 9.4 / 10 overall. It delivers restaurant-grade capacity, exceptional stainless durability, and a clean undermount silhouette that elevates virtually any kitchen design — making it our top-rated large-format undermount kitchen sink.
See Final Verdict & ScoreKohler Vault K-3942-1-NA: Full Product Overview
Design & Construction
The Vault series represents Kohler's commitment to bringing professional kitchen aesthetics into residential spaces. The K-3942-1-NA is constructed from 18-gauge T-304 stainless steel — the same alloy grade used in commercial kitchens — with a brushed satin finish that resists fingerprints, water spots, and minor surface scratches better than a polished alternative. The corners are tight and squared off, giving the sink a distinctly architectural look that pairs naturally with modern, transitional, or even industrial kitchen designs.
At 35-1/2 inches wide and 21-1/4 inches front-to-back, this is unambiguously a large sink. The single bowl measures a generous 9-5/8 inches in depth, meaning you can fully submerge a standard sheet pan, a commercial-size stockpot, or a restaurant-grade wok without drama. The tall, nearly vertical side walls — a signature of the Vault design — maximize every cubic inch of that interior volume without requiring the outer footprint to grow even larger.
Kohler incorporates sound-dampening pads on the bottom and sides of the bowl, which makes a real difference when running the garbage disposal or rinsing heavy cast iron cookware. It's not completely silent, but it's notably quieter than bare-steel competitors at a similar gauge. A pre-installed bottom offset drain keeps standing water from pooling, and the single pre-drilled faucet hole (1-3/4" diameter) is centered behind the bowl for maximum flexibility in faucet pairing.
Who Is This Sink For?
The K-3942-1-NA is ideal for serious home cooks who spend real time at the sink — prepping large batches, handling bulky cookware, and running a busy household kitchen. It's also an excellent choice for anyone doing a full kitchen renovation who wants a sink that will still look purposeful and premium a decade from now. Because it's an undermount design, it requires a countertop material that can support the weight and provide a clean eased or ogee edge — think quartz, granite, solid surface, or thick hardwood. If you're keeping laminate countertops, you'll need to explore a drop-in alternative.
DIY installers with solid experience can absolutely handle this installation, but the 18-gauge stainless carries real weight (approximately 42 lbs for the sink alone), and the undermount clip-and-silicone method requires precision. Most homeowners hire a professional stone fabricator and plumber simultaneously to ensure the reveal line is consistent and the silicone seal is watertight for the long haul.
Finish, Color & Customization
The "-NA" suffix in the model number denotes that no additional finish coating is applied — the sink ships in its standard brushed stainless steel finish rather than a painted or enameled color. Kohler uses this convention consistently across its stainless product lines. This is by design: the mechanical brushed surface treatment is integral to the steel itself, so you never have to worry about a proprietary topcoat chipping or yellowing over time. If you prefer a different look, Kohler does offer similar Vault configurations in enameled cast iron, but the K-3942-1-NA is strictly stainless.
Overall Dimensions
35-1/2" W × 21-1/4" D × 9-5/8" H
Material & Gauge
18-gauge T-304 stainless steel
Bowl Configuration
Single bowl, high-capacity
Faucet Holes
1 pre-drilled (1-3/4" dia.), additional holes by fabricator
Drain Opening
3-1/2" (standard strainer)
Mounting Style
Undermount (clips + silicone)
Sound Dampening
Yes — bottom + side pads
Warranty
Kohler limited lifetime warranty
Pros
- Exceptionally large, deep single bowl — ideal for oversized cookware
- 18-gauge T-304 stainless is notably rigid and dent-resistant
- Sound-dampening pads reduce disposal and rinsing noise
- Offset drain minimizes standing water
- Clean undermount profile keeps counters easy to wipe
- Kohler lifetime limited warranty
- Neutral brushed finish suits virtually any design palette
- Tight radius corners maximize usable interior volume
Cons
- Premium price — costs more than most single-bowl competitors
- Requires solid-surface countertop (not compatible with laminate)
- Heavy; professional installation strongly recommended
- Only one pre-drilled faucet hole — multi-hole setups need extra fabrication
- No colander, bottom grid, or drain assembly included in base package
- Single bowl means no easy divide for washing vs. rinsing
- Large footprint requires 36" minimum base cabinet
This guide contains affiliate links. We may earn a commission if you purchase through our links, at no extra cost to you. Our editorial recommendations are independent of commercial relationships.
Installation: What to Know Before You Buy
Undermount installation is simultaneously the biggest selling point and the biggest commitment of this sink. Because the bowl drops below the countertop surface and is bonded from underneath, the countertop itself bears the full weight of the sink, water, and contents. This is why material selection matters so much: quartz and granite are the gold standard, engineered solid surface (like Corian) works well, and thick butcher block can accommodate it with the right preparation and sealing. Laminate, ceramic tile, and thin cultured marble are generally not suitable.
A professional stone or countertop fabricator will cut the sink cutout to Kohler's published template dimensions, finish the exposed edge (typically a 1/4" to 3/8" reveal is recommended), and may apply a stone adhesive along with the mechanical clips. The plumber then connects the drain, garbage disposal if applicable, and faucet supply lines. Attempting to cut the countertop hole yourself without a CNC or experienced wet saw setup risks a chipped, uneven reveal that will haunt the aesthetic of your kitchen for years.
Kohler packages the K-3942-1-NA with an installation template and hardware, but does not include the drain strainer, bottom grid, or faucet — all of which are sold separately. Budget accordingly: a quality stainless bottom grid (Kohler model K-6487 fits this bowl), a drain assembly, and a faucet can add $100–$400 to your total spend depending on brand and finish choices.
Recommended Accessories & Add-Ons
The K-3942-1-NA is designed as a platform, and Kohler's Vault accessory ecosystem fills it out nicely. A stainless bottom grid (sold separately) is essentially mandatory — it raises your cookware off the bowl floor to prevent scratching, allows debris to flow past to the drain, and gives a polished, finished look inside the bowl. The Kohler K-6487 or K-6488 grids are sized specifically for this bowl and worth buying at the same time as the sink.
A garbage disposal is a natural pairing, and the K-3942-1-NA's single drain opening accepts any standard 3-1/2" disposal flange. Kohler's own Continuum series disposals are designed to integrate visually with the Vault finish aesthetic, though any major-brand disposal will work mechanically. A high-arc pull-down faucet is the most popular pairing, given the bowl depth and the counter space freed up by the undermount design.
Because the counter surface is continuous and uninterrupted — a hallmark of undermount sinks — you might also consider a rollout cutting board or colander tray that spans the bowl rim. Several third-party accessory makers produce hardwood or stainless roll-up mats sized for 33–36" undermount bowls that transform the sink area into an expanded prep station.
| Accessory | Kohler Model | Purpose | Material |
|---|---|---|---|
| Bottom Bowl Grid | K-6487 / K-6488 | Scratch protection, improved drainage | Stainless steel |
| Drain Strainer | K-8799 (or equivalent) | Catches debris, covers drain | Stainless steel |
| Garbage Disposal Flange | Kohler Disposal Flange Kit (verify model with retailer) | Connects disposal to drain opening | Stainless steel |
| Pull-Down Faucet (suggested) | Kohler Tournant / Vinnata | High-arc, wide reach for large bowl | Stainless / various |
| Silicone Caulk | Fabricator-supplied | Watertight sink-to-counter seal | Kitchen-grade silicone |
How the Kohler Vault Stacks Up
To give the K-3942-1-NA meaningful context, here's how it compares against similarly positioned large-format undermount single-bowl stainless sinks in the market.
| Feature | Kohler Vault K-3942-1-NA | Blanco Precis Super Single | Kraus KHU100-33 | Elkay Lustertone ELUHH3420 |
|---|---|---|---|---|
| Overall Size | 35-1/2" × 21-1/4" | 32" × 19" | 33" × 22" | 34" × 20-1/2" |
| Bowl Depth | 9-5/8" | 9-1/2" | 10" | 9-1/2" |
| Gauge | 18-gauge | Silgranit composite | 16-gauge | 18-gauge |
| Material | T-304 stainless | Silgranit composite | T-304 stainless | T-304 stainless |
| Sound Dampening | Yes — pads + coating | Inherent (composite) | Yes — pads | Yes — pads |
| Faucet Holes | 1 (pre-drilled) | 0 (buyer specifies) | 0 (no holes) | 0 (no holes) |
| Mounting | Undermount | Undermount | Undermount | Undermount |
| Warranty | Lifetime (Kohler) | Lifetime (Blanco) | Lifetime (Kraus) | Lifetime (Elkay) |
| Price Tier | Premium ($$$$) | Premium ($$$) | Mid-range ($$) | Mid-range ($$) |
| Overall Rating | 9.4 / 10 | 8.8 / 10 | 8.2 / 10 | 8.0 / 10 |
How We Evaluated the Kohler Vault
Our evaluation process for kitchen sinks draws on a combination of hands-on testing (where possible), in-depth specification analysis, contractor and installer interviews, and aggregated owner feedback across major retail review platforms. For a flagship product like the Kohler Vault K-3942-1-NA, we also factored in Kohler's track record for warranty fulfillment and parts availability — two dimensions that matter enormously over a 10–20 year ownership horizon.
We scored the
